X3msnake - INSPIRE 3D Scanner Showcase


Learn more about INSPIRE

https://revo.ink/3tkLN8x


Boxing


Unboxing




Reverse engineering inspire case with mini



_inspire_re2

First impressions

Quite a capable scanner, light, easy to carry and to use.

It does not have the punch when it comes to texture and scan range like the POP3 does, yet it is very usable and makes up for the loss in texture quality and scanning distance by being very portable, agile and light weight. Personally i just carry it in a small zipper bag inside my dayly bag and use it wherever i go now.

Considering it should cost a lot less than POP3 it is a great entry scanner for all of those that want to wet their feet into real structured scanning and also for the veterans out there that want a cheap throw-in-the-bag-carry-around scanner for quick and almost stealth scanning

First Scans



Merged 3 scans 5.2.0 Scanned with 5.2.2



Boxing
Unboxing
First impressions
First scans

4 Likes

Winch - Feature mode

Clean Pointcloud typography side

Clean Pointcloud - Other side with vertex color


Capture layout

Model turntable

3 Likes

Nice details , what size ?

Ok wow nice !

1 Like

This big :slight_smile:

2 Likes

608RS bearing scan

Scan Setup

Crumpled paper on turntable grey light coating on bearing


Raw frames and used settings

Fuse Pointcloud Advanced 0.2


Meshed / Textured

At this closeup level texture is useless camera is too out of focus to be of any use

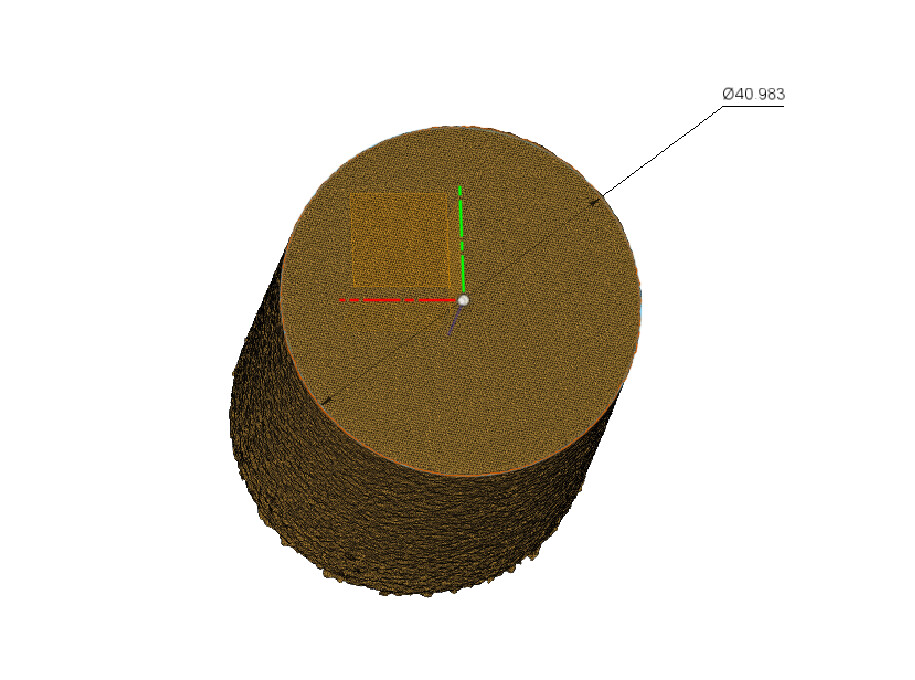

Dimensional accuracy check





In general the dimensions are good for a object that is way off the recommended scan size.



4 Likes

I am surprised by the accuracy , I expected less than that , not bad .
Did you scan in Standard mode at minimum distance ?

SUC box






Model turntable

2 Likes







3 Likes

Feature scan for the shape and texture

Same scan but blinking frames removed from the raw capture

Using my Revoscan Frame Player (Flayer) i manually marked the frames where the model was blinking and flagged them for removal as described in this post > here <

Fast scan 18fps for the hair/body

The model

7 Likes

What a cute doll face !
Can’t wait for the white balance to be manual so I can use my own LED attachment for scanning bigger objects in color , the team working on it already . finger crossed :crossed_fingers:

3 Likes

Jo Marv

Model was exported out of Revoscan, and mesh was clenup and filled on meshmixer without changing the original coordinates.

Model was then pasted over the meshed model in the scan cache folder, project opened and texture was projected inside Revostudio

As always, video is private :wink:

6 Likes

Great result ! Love it

1 Like

Quick (60s) mold scan to be referenced as stock for remachining

The fusing and meshing took way longer than the scan itself :slight_smile:



Model turntable with textures

Another one for the same purpose

This one has no texture (forgot to turn it on)



Model turntable

2 Likes

Selfootie






Ugly reality


Model turntable

Sketchfab (downloadable)

3 Likes

Another foot scan RE for insole ergonomics

below is the fused pointcloud scanned and fused with the Inspire glued to a surface3 tablet

Insole to be generated using the opensource software gensole

2 Likes

Just model turntable videos

Kickstarter link

INSPIRE 3D Scanner on Kickstarter

5 Likes

Turntable model intersections for scale

3 Likes

Black Hat








Model turntable

1 Like

Lunch - fig pizza




Turntable model

2 Likes
