MIRACO 3D SCANNER
Scanning Sculpture Plaster Model
Beethoven portrait – Original Bronze
Siméon Charles Joseph Foucault ( 1884 Nantes - 1923 Paris)

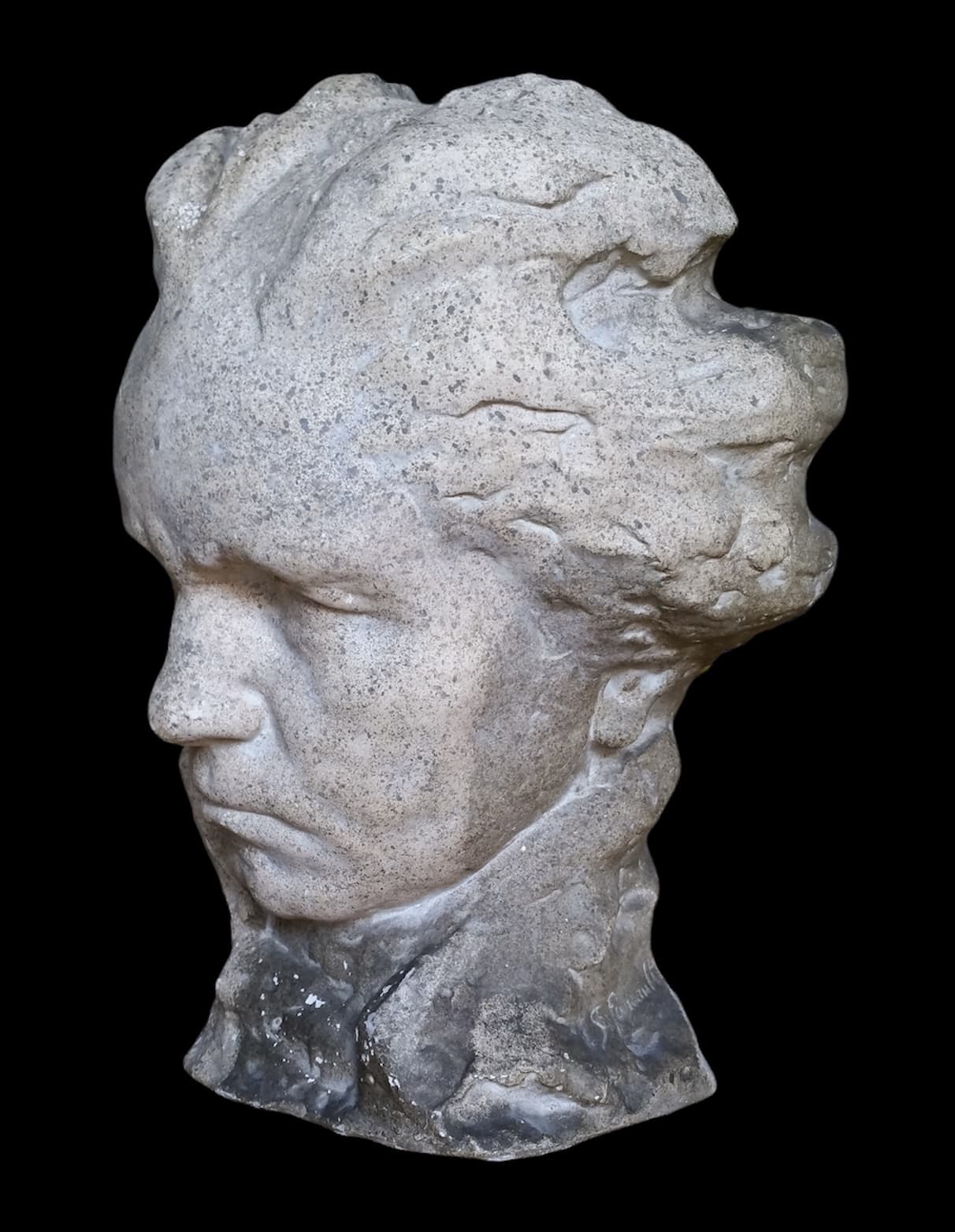

Beethoven portrait – patinated plaster model
Single Module device, near mode, continuous, high accuracy

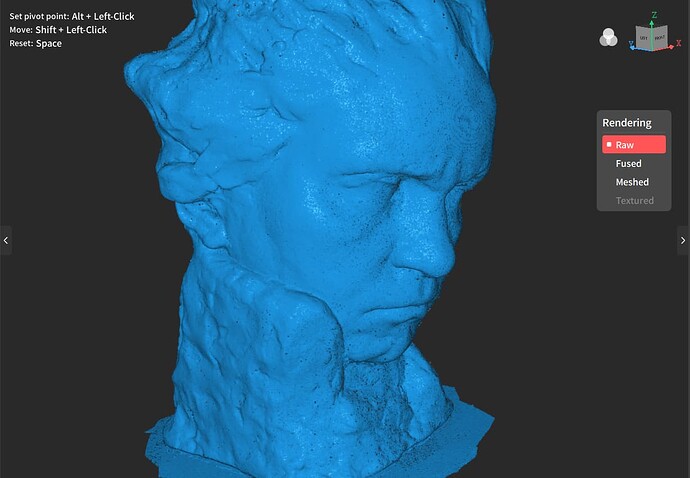

RAW
FUSED

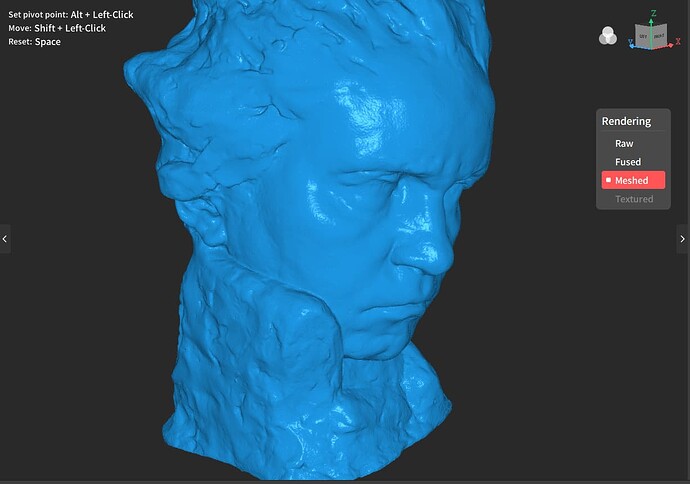

MESHED

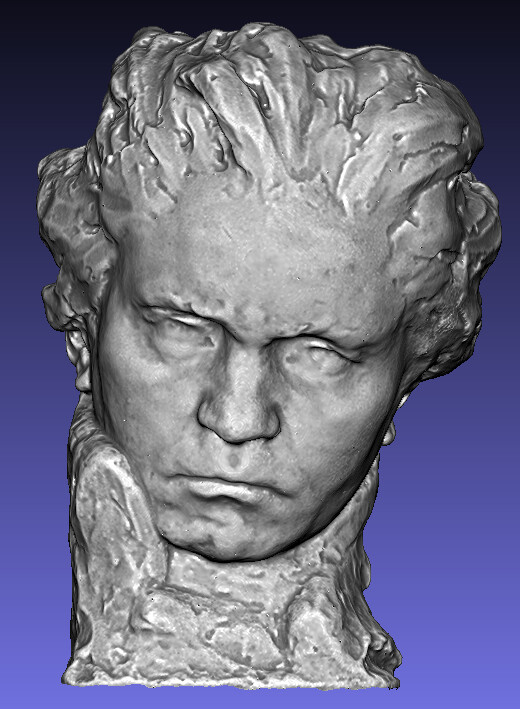

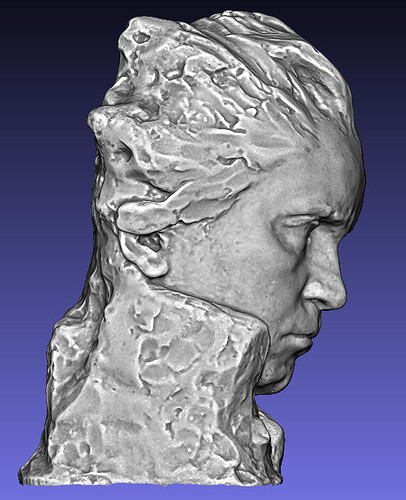

MeshLab:
SIZE:
MIRACO 3D SCANNER to study and document signs, workmanships, damages of marble sculpture
MIRACO’s ability to detect fine details on a sculpted marble surface.

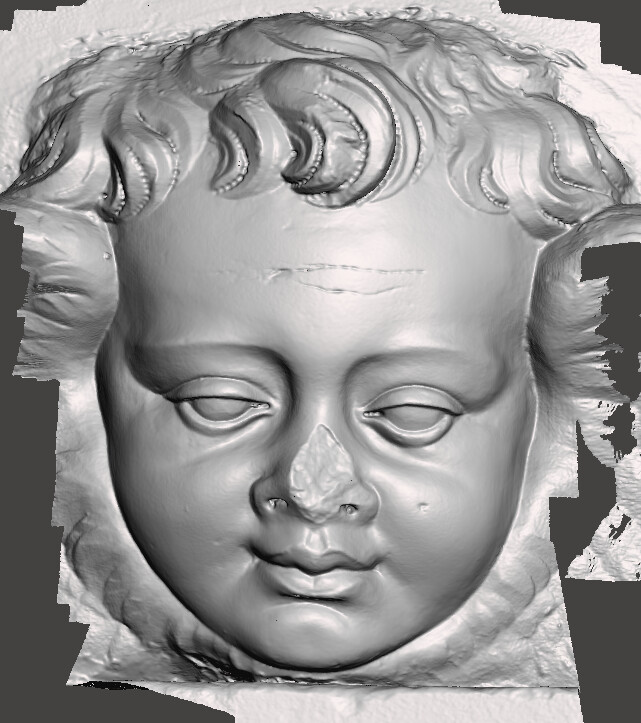

Detail of 16th-century cerubin head: the marble surface is finely carved, but heavily obscured by the presence of dirt, dust, and treatment residues. 3D scanning allows all details, tool marks, and damage to the marble to be highlighted. The comparison with the photographic image in this case is definitely telling.
near mode, artificial lighting, size: 25 cm ca
That’s excellent Davide , the details and the smoothness area … beautiful scanned
More than eyes can see …
Thanks Catharina!!!

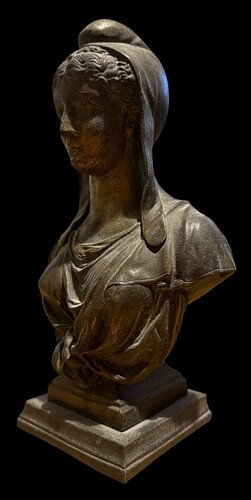

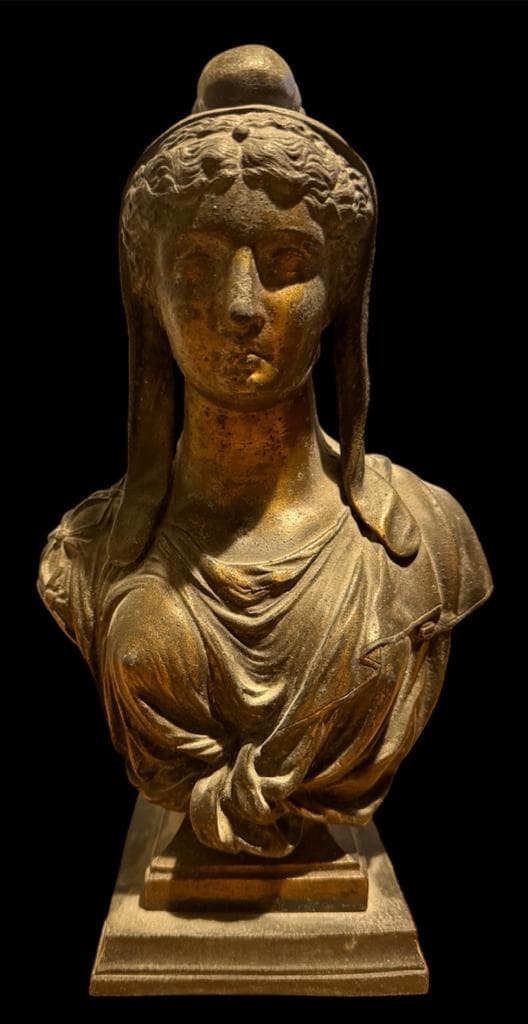

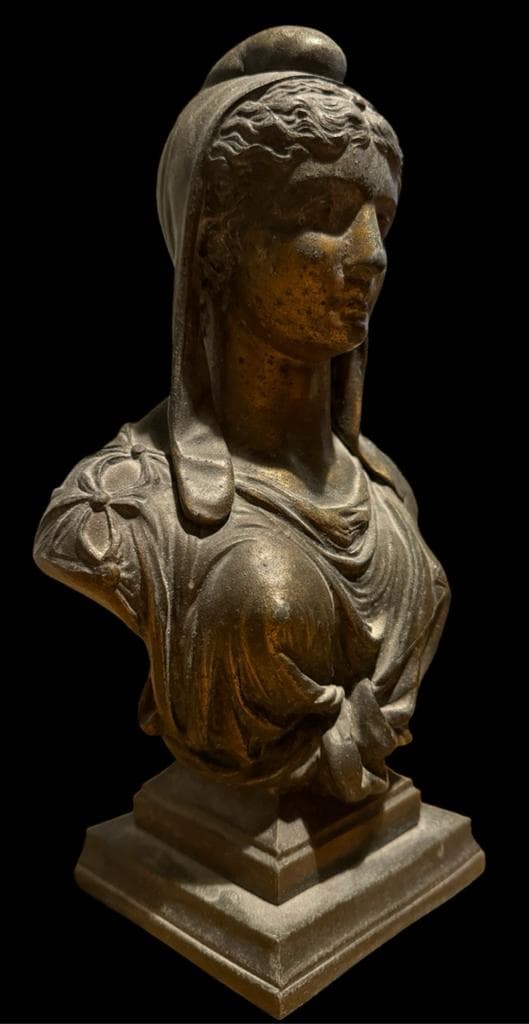

Dark Small Size Sculpture - Unknow Metal Alloy - French - late 19th century
Miraco, near mode, artificial light - untreated surface
Size
Scanning

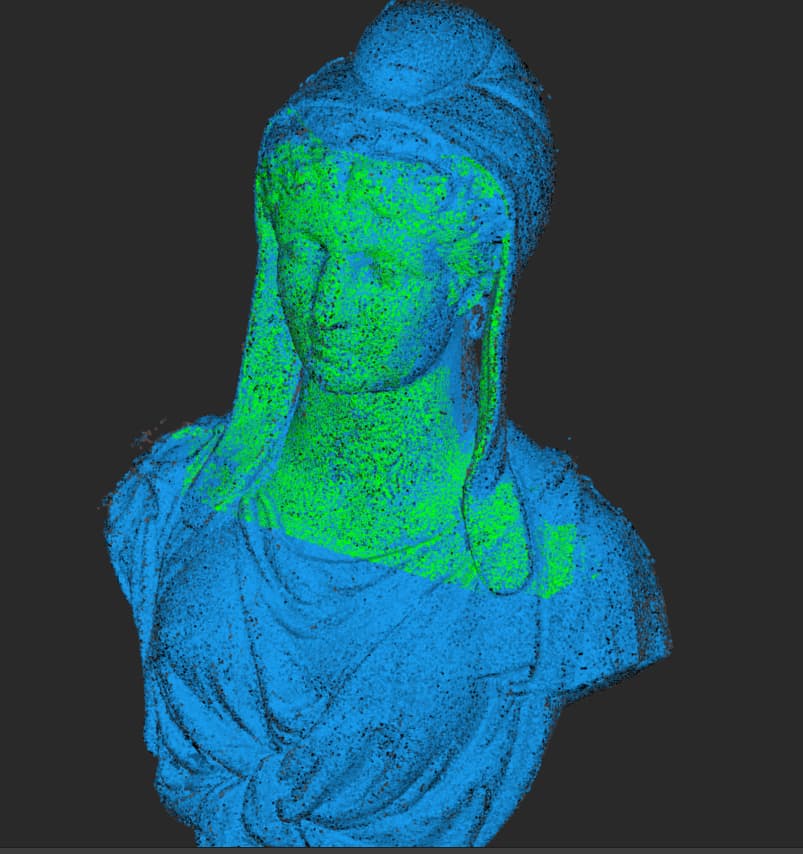

Raw Point Cloud - RevoScan
Fused Point Cloud - RevoScan

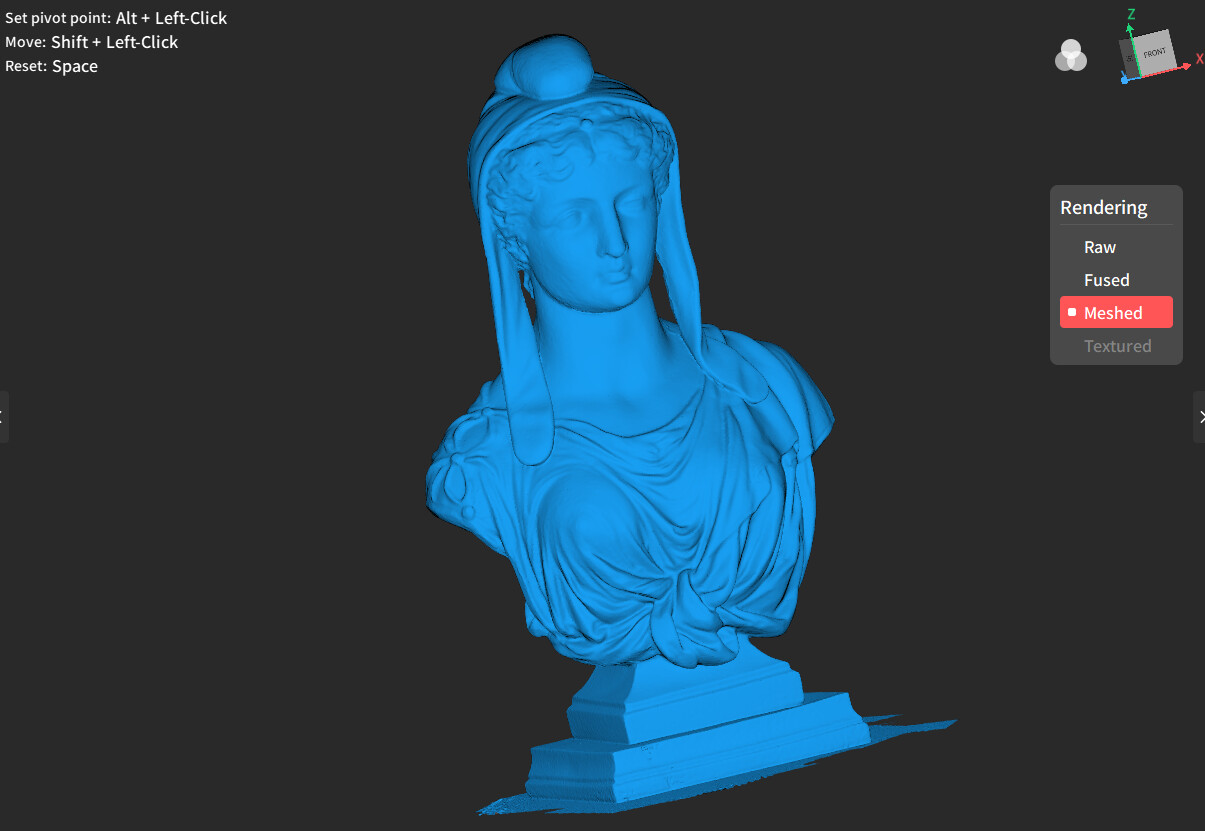

Meshed - RevoScan
MeshLab

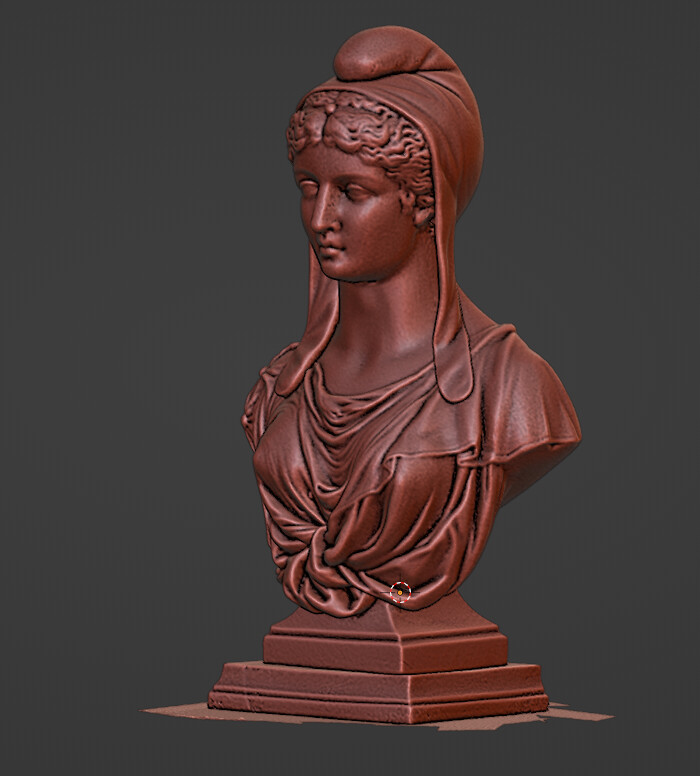

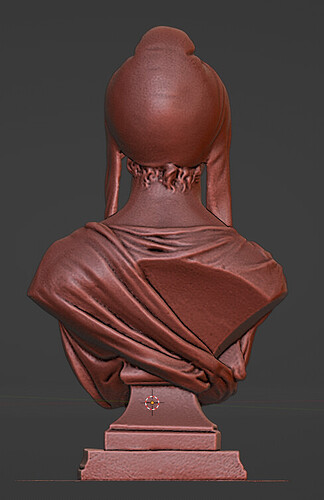

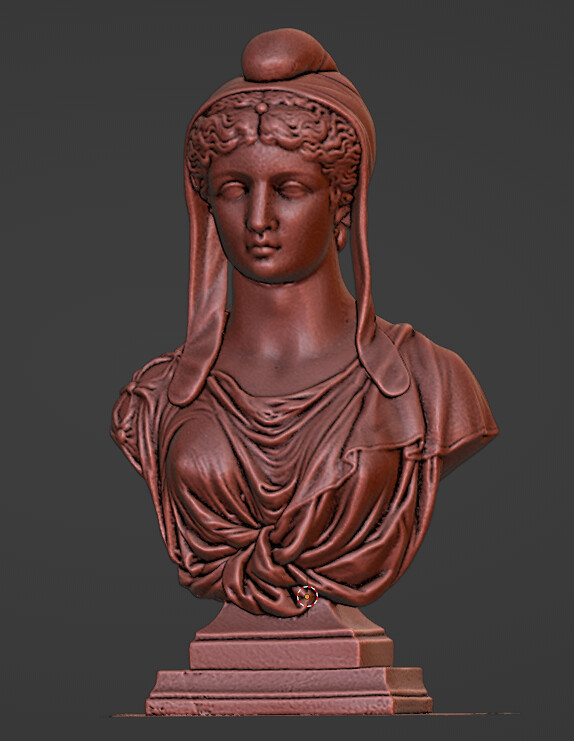

Blender
Size - MeshMixer
Beautiful sculpture and scan Davide !

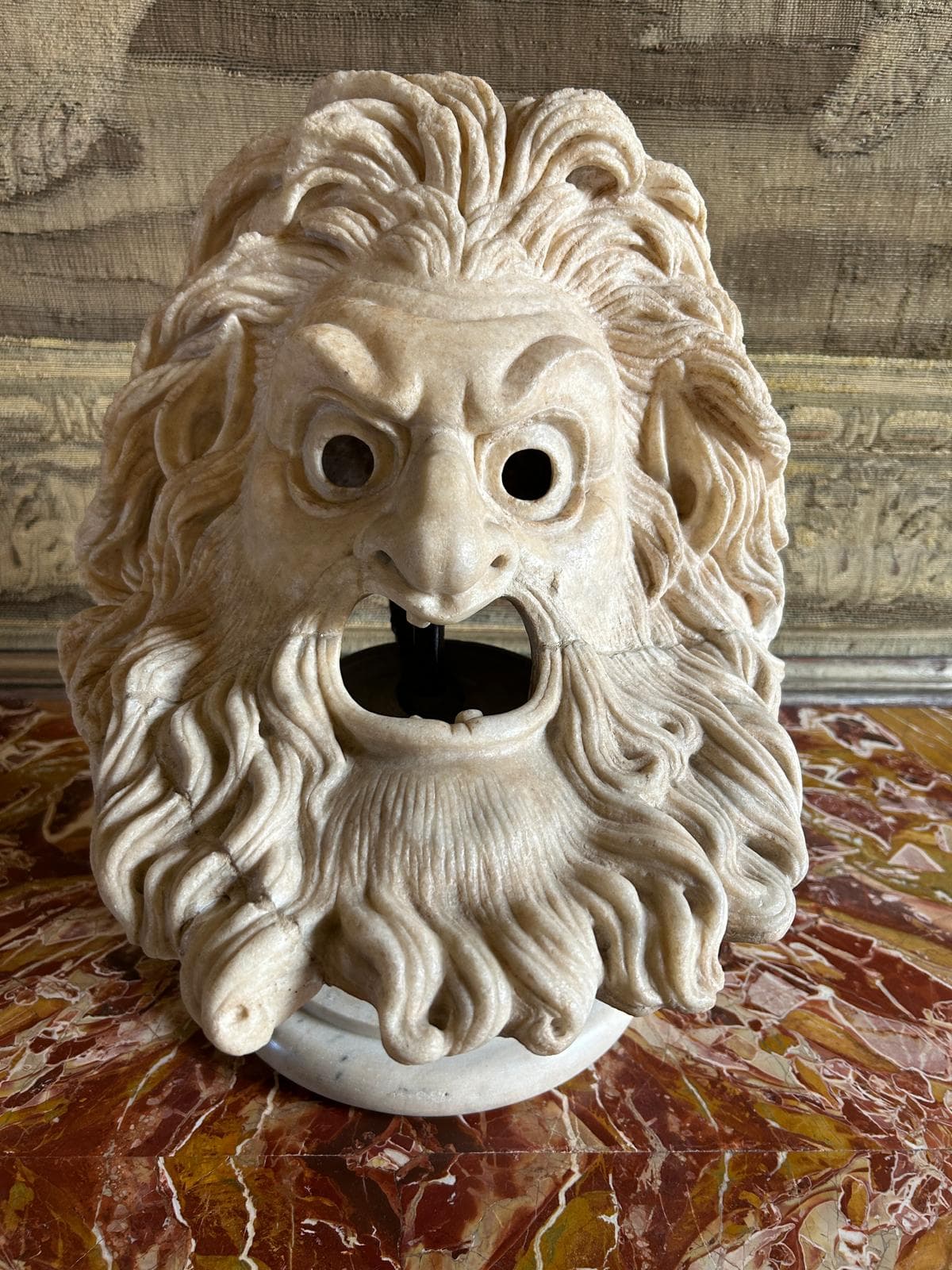

MIRACO SCANNING Marble Theatrical Mask - from Villa Altieri - Musei Capitolini - Rome, Italy
Satyr mask
Pre order MIRACO now on Revopoint official website: Revopoint MIRACO: Big and Small Object Standalone 3D Scanning
Author: Uncknow Artist
Type: Sculpture
Age: Roman Period
Material and technique: marble, carving
Size: 36 x 43 x 45 cm ca (including the marble base)
Single Module device, near mode, continuos, high accuracy
Light condition: Artificial+Natural

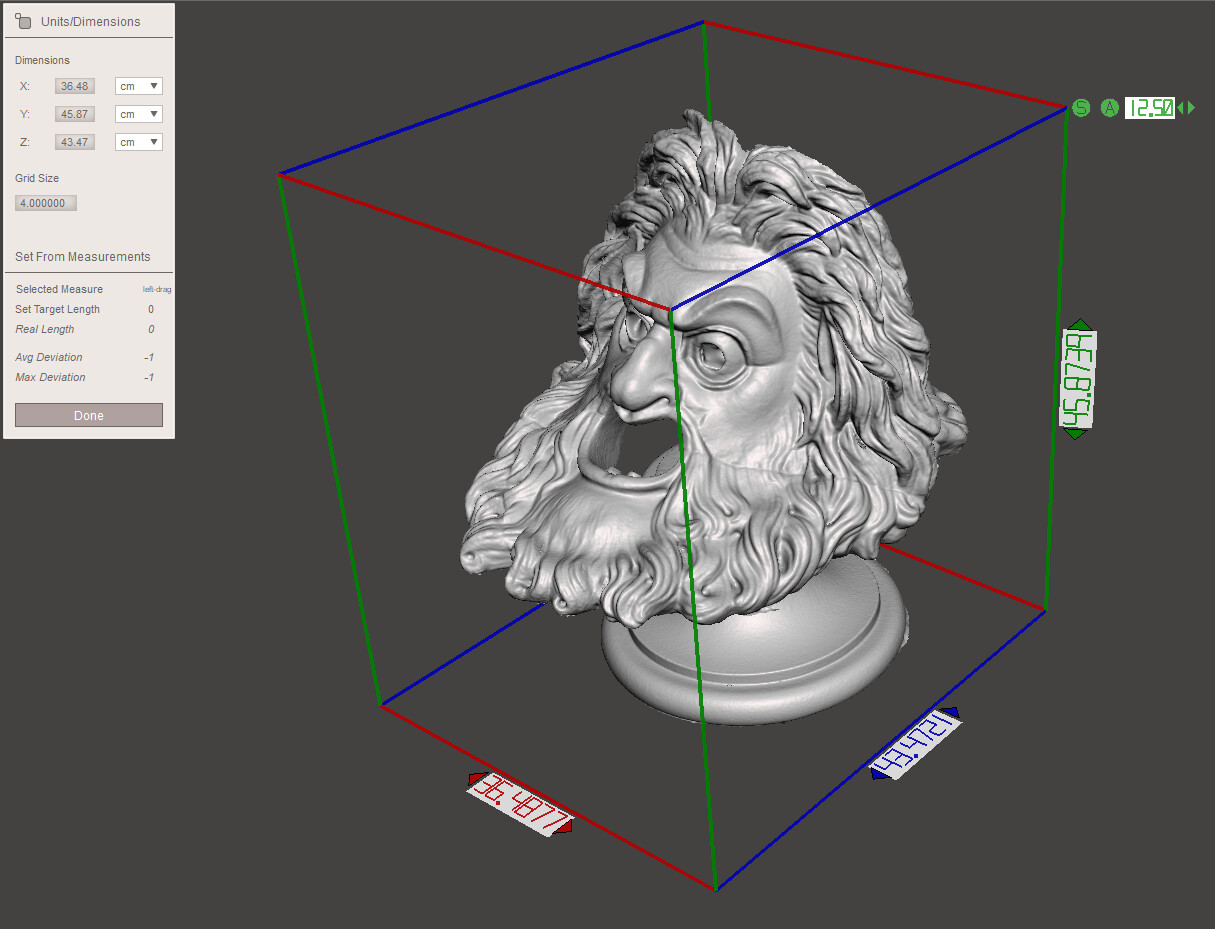

MeshMixer

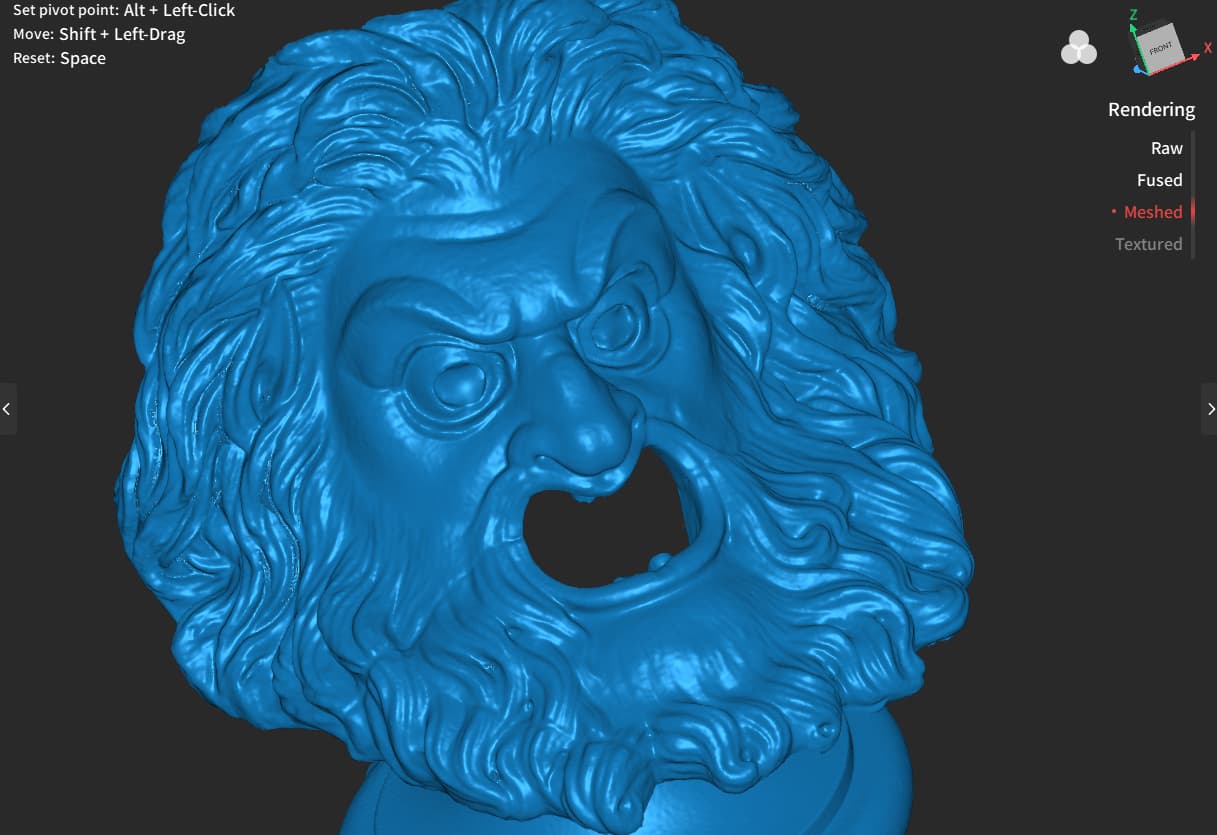

RevoScan
Raw

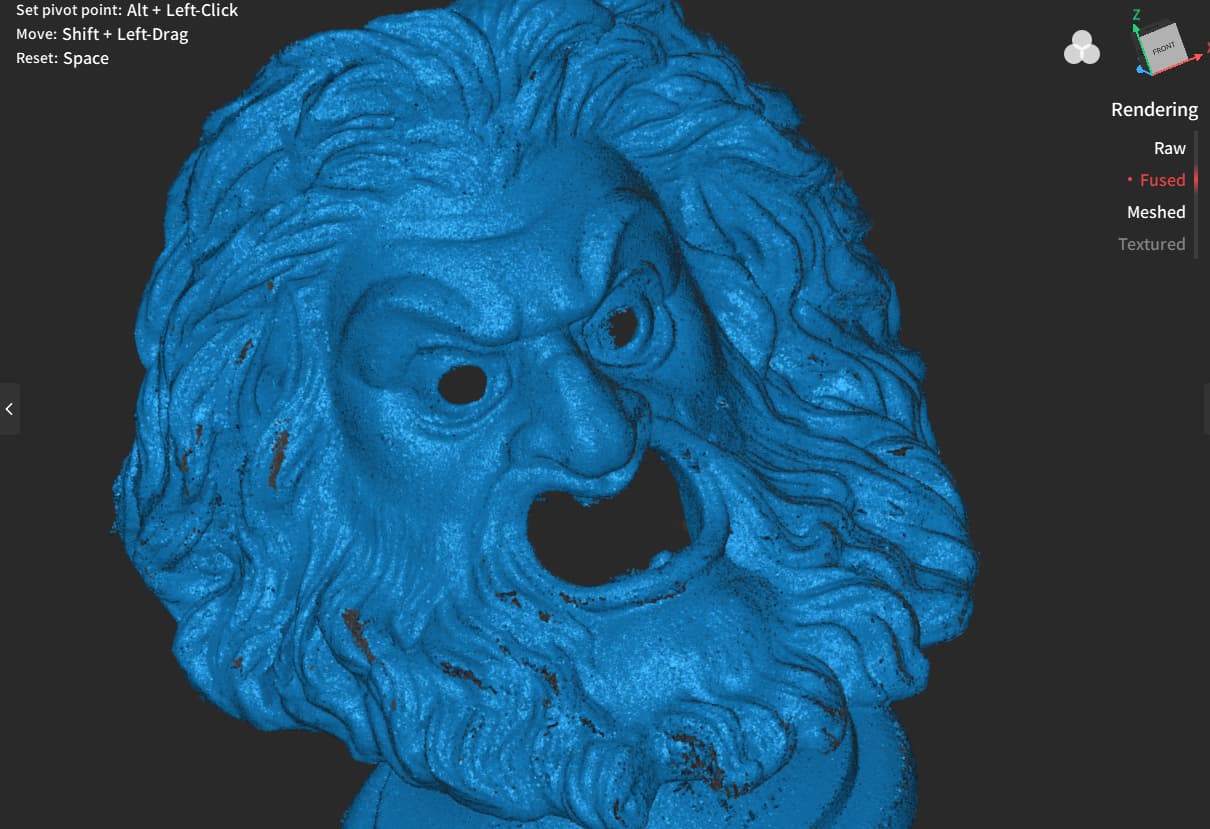

Fused
Meshed

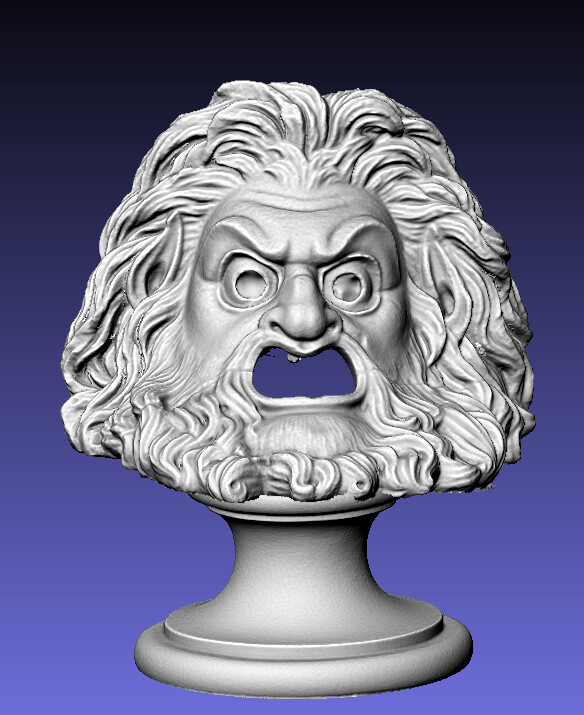

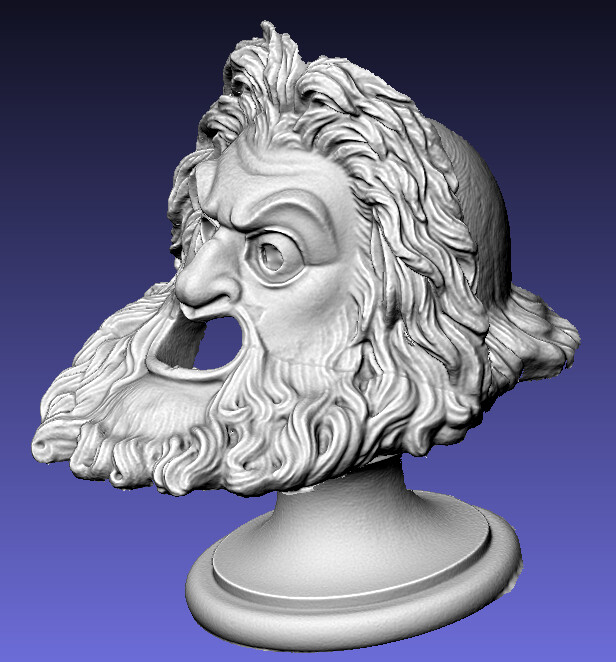

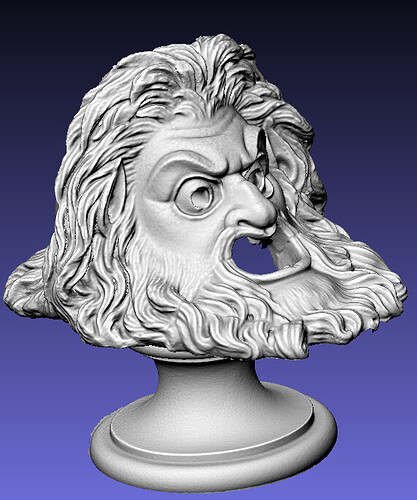

MeshLab
Pre order MIRACO now on Revopoint official website: Revopoint MIRACO: Big and Small Object Standalone 3D Scanning
Beautiful scan Davide !
I present my restoration/reconstruction project of a sculpture: a
16th-century cerubin head: the marble surface is finely carved, but heavily obscured by the presence of dirt, dust, and treatment residues. 3D scanning allows all details, tool marks, and damage to the marble to be highlighted.
Scanning with Revopoint MIRACO Scanner
near mode, artificial lighting, size: 25 cm ca
As you can see the sculpture is damaged and part of the nose is missing.
One of the possibilities of 3D technologies in the field of cultural heritage restoration is precisely to record by 3D scanning the shape and from that use it to reconstruct missing parts.
In this case I proceeded by printing a portion of the scan:
The next step was to reconstruct on 3D printing the missing part (using plasticine):
After that I scanned (again with MIRACO):
The next step was to make a 3D model of the missing part of the nose by performing Bolean subtraction operations between the scan of the reconstructed model and the one with the missing part:
I checked the consistency by aligning the reconstructed part with the complete 3D model of the sculpture:
At this point having obtained the reconstructed part (a kind of fragment of the original), it was necessary to verify the design by making the physical prototype:
Finally, This is the final patinated (faux marble) prototype:
As you can see, the result simulates a detached fragment that is repositioned on the original.
Update
Test run on the original sculpture in the Basilica of San Crisogono in Rome: the 3D printed reconstruction fit perfectly the lacuna.
Below, the test print I made is 1:2 scale, placed near to the original. This shows that if you work with the right tools and in the correct way you can work with in scale without this affecting the result. Working in scale (for 3D printing) means significantly reducing time and costs.
Excellent scan, Great application!
Master at work … well done !
