Unboxing MIRACO 3D Scanner

Please note that this is a beta prototype, and the product ID and packaging are for reference only. The final mass-produced version may have differences.

Pre order MIRACO now on Revopoint official website: Revopoint MIRACO: Big and Small Object Standalone 3D Scanning

Revopoint’s new scanner has finally arrived.
New in all respects: the latest of the Revopoint branded scanners and with a completely different format and functionality to its predecessors.

MIRACO is the world’s lightest standalone 3D scanner at only 750 gr.

The package is the largest and heaviest of the Revopoint scanners.

The contents of the standard edition are rich and comprehensive:

the MIRACO scanner with a design similar to an old-style professional camera

The power cable with adapters

USB C cable

HDMI cable to connect MIRACO to an external monitor

Calibration tables

Markers

Magic pad (the big one rectangular and the circle for the turntable)

Turntable

Handle tripod

Front view with on side comfortable handles and up the sensors, ir projector, camera etc

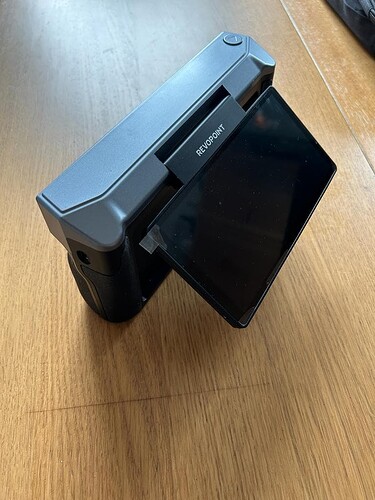

The other side with LCD panel (with hinge, and adjustable angle)

All open

Left side with USB C (for power supply, computer connection and HDMI connection)

Down-side with the standard screw attachment, for photo tripod

Up-side with start/stop scanning button (really convenient, especially when using single-shot mode)

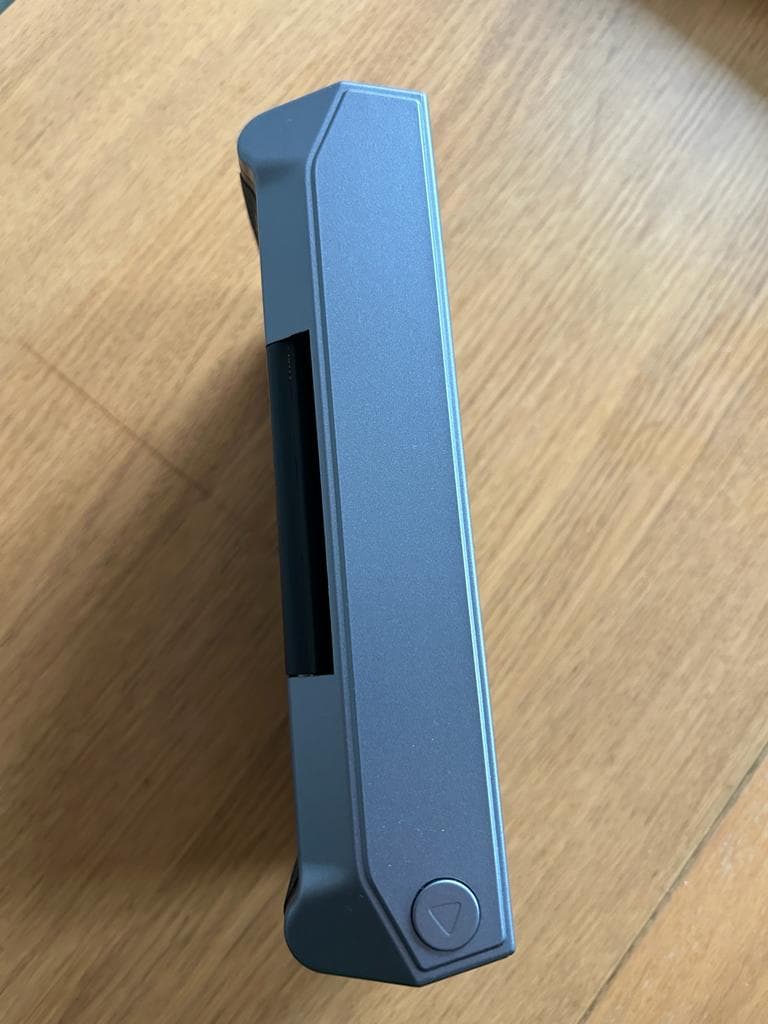

Rigth side with on/off button

Startup screen

MIRACO is two scanners in one, and is designed to scan small and large objects:

❖ Small Objects (Size): Display scans of small objects such as rings, coins, dolls, historical items, and fossils.
❖ Large objects (Size): Shows scans of large objects such as people, cars, car parts, larger vehicles, rooms, damaged objects, tools and tool parts, etc.

Turned on and in the scan screen

Fusing screen

Editing screen

My carry/protection case - bought on amazon (NOT in the original set Revopoint)

.

3 Likes

MIRACO SCANNING in MUSEUM

Antonio Canova self-portrait, plaster model - Museo di Roma

Pre order MIRACO now on Revopoint official website: Revopoint MIRACO: Big and Small Object Standalone 3D Scanning

Author: Antonio Canova (Possagno 1757 - Venice 1822)
Type: Sculpture
Age: 1812
Material and technique: plaster model, plaster cast
Size: 89 cm high; 47 cm high; 39 cm wide

PS: Being very close to the wall it was not possible to scan the back of the bust

Single Module device, far mode, continuous, standard accuracy
Light condition: Artificial and natural light (left by window)

The scan was edited and processed on pc



Repeated until overlapping points are eliminated

After cleaning before meshing

Meshing

The final result:WOW!

MeshMixer

6 Likes

Ottimo lavoro ! :clap: :clap: :clap:

2 Likes

MIRACO SCANNING in MUSEUM

Endymion. The front panel of a so-called “Braschi sarcophagus” - Museo di Roma

Follow the MIRACO project on Kickstarter: https://revo.ink/46U4KNo


Author: Anonymous
Type: Sculpture
Material and technique: Carved marble
Age: Ca. 250 CE.
Size: 63 cm × 214 cm × 57 cm.

Single Module device, far mode, continuous, standard accuracy
Light condition: Artificial and natural light (on the side from large windows)

The scan was edited and processed on pc


Fused

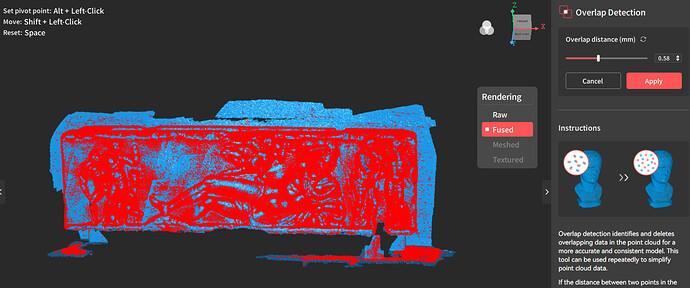

Repeated until overlapping points are eliminated

After cleaning

Meshing

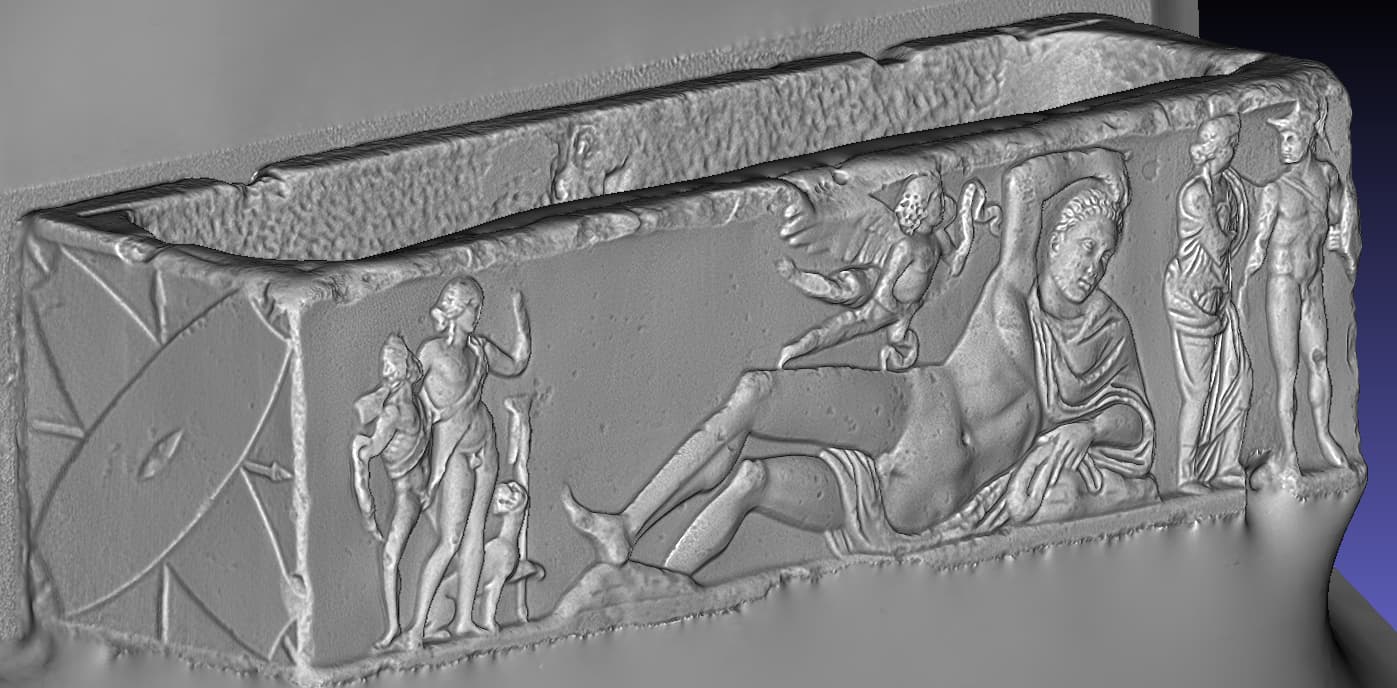

Meshed

MeshMixer

MeshLab

3 Likes

MIRACO SCANNING in MUSEUM

Carlotta de’ Medici Lenzoni - portrait, plaster model - Museo di Roma

Pre order MIRACO now on Revopoint official website: Revopoint MIRACO: Big and Small Object Standalone 3D Scanning

Author: Pietro Tenerani (Torano di Carrara 1789 - Rome 1869)
Type : Sculpture
Age: 1822
Material and technique: plaster model of the marble bust
Size: 52 cm high x 40 cm wide

Single Module device, near mode, single-shot, standard accuracy

Light condition: Artificial, spot light and strong shadows

Raw

Fusion

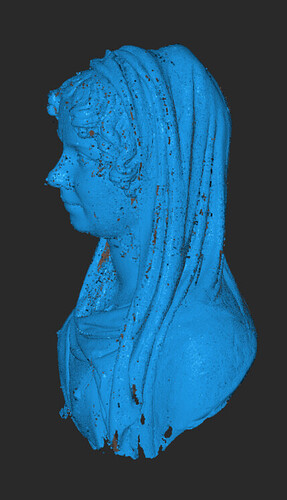

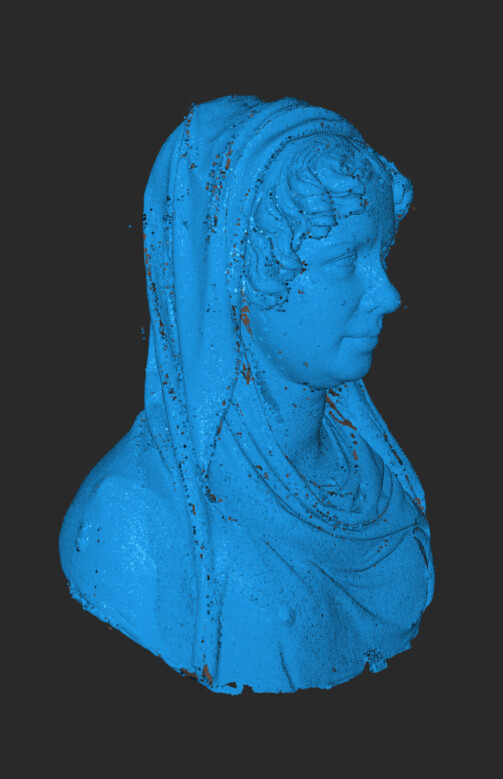

Fused


Repeated until overlapping points are eliminated

After cleaning

Meshing

Meshed

MeshMixer

1 Like

MIRACO SCANNING in MUSEUM

Pope Innocenzo XII - portrait, terracotta model - Museo di Roma

Pre order MIRACO now on Revopoint official website: Revopoint MIRACO: Big and Small Object Standalone 3D Scanning


Author: Domenico Guidi (attributed) (Torano di Carrara 1625 - Rome 1701)
Type: Sculpture
Age: Ca 1694 - 1696
Material and technique: terracotta, modelled
Size: height 63 cm; width 56 cm; depth 40 cm

Single Module device, near and far mode, continuous, standard accuracy

Light condition: Artificial mixed with natural (backlight)

"The scan was edited and processed on pc**

Raw

Testing One-click Edit

MeshMixer

MeshMixer - fused at 0,26 - advanced

5 Likes

I am jealous you have access to all this. Pretty cool!!

3 Likes

Lovely scans. Really impressive skills you have.

3 Likes

MIRACO SCANNING in MUSEUM

The souls that fly to heaven - Plaster model - Museo di Roma

Pre order MIRACO now on Revopoint official website: Revopoint MIRACO: Big and Small Object Standalone 3D Scanning


Author: Pietro Tenerani (Torano di Carrara 1789 - Rome 1869)
Type: Sculpture
Age: 1825
Material and technique: Plaster cast
Subject: Plaster model for the marble relief of the tomb monument of Princess Czartoryski
Size: 136 x 110.5 x 13 cm

Single Module device, far mode, continuous, standard accuracy
Light condition: Artificial

"The scan was edited and processed on pc**


After fusing and cleaning

Meshing

Meshed

MeshMixer

5 Likes

Thanks Andrew

Thanks Sam!

Someone is rocking today … great scans Davide !

3 Likes

Thanks Caharina! Your appreciation gives me, always, great pleasure (you being a Master!)

1 Like

Very Nice scans Davide ! Congratulations :tada:

1 Like

Thanks Sébastien!

1 Like

Your really knocking it out with the scans. Great job and scans.

1 Like

Great scans Davide! And it’s so good that you show the dimensions clearly. :+1: :+1: :+1:

Thank you so much!

2 Likes

MIRACO SCANNER - Scanning, Fusing, Editing, Meshing a Sculpture: ALL WITHOUT the PC — in just over twenty minutes!!

Pre order MIRACO now on Revopoint official website: Revopoint MIRACO: Big and Small Object Standalone 3D Scanning

Author: Yiannis Nanouris
Type: Sculpture
Age: XXI century
Material and technique: Terracotta, clay modelled and baked
Size: 20 cm

Single Module device, near mode, single-shot, standard accuracy

The 3D scan of the sculpture, and all subsequent operations, was recorded with MIRACO’s screen recording mode.

2 Likes

Thanks Jermaul!

1 Like

MIRACO SCANNING “SAFARI” - around downtown Rome

Renaissance age - polished marble - bas-relief - trophy of weapons - Santa Maria in Trastevere basilica

Pre order MIRACO now on Revopoint official website: Revopoint MIRACO: Big and Small Object Standalone 3D Scanning

Author:
Type : Sculpture
Age: Renaissance
Material and technique: Carved and polished marble
Size: central panel 100 cm wide

Single Module device, near mode, continuos, standard accuracy
Light condition: Artificial
The scan was edited and processed on pc

Raw

Fusion

Cleaning before meshing

Meshing
Screenshot 2023-10-20 072921

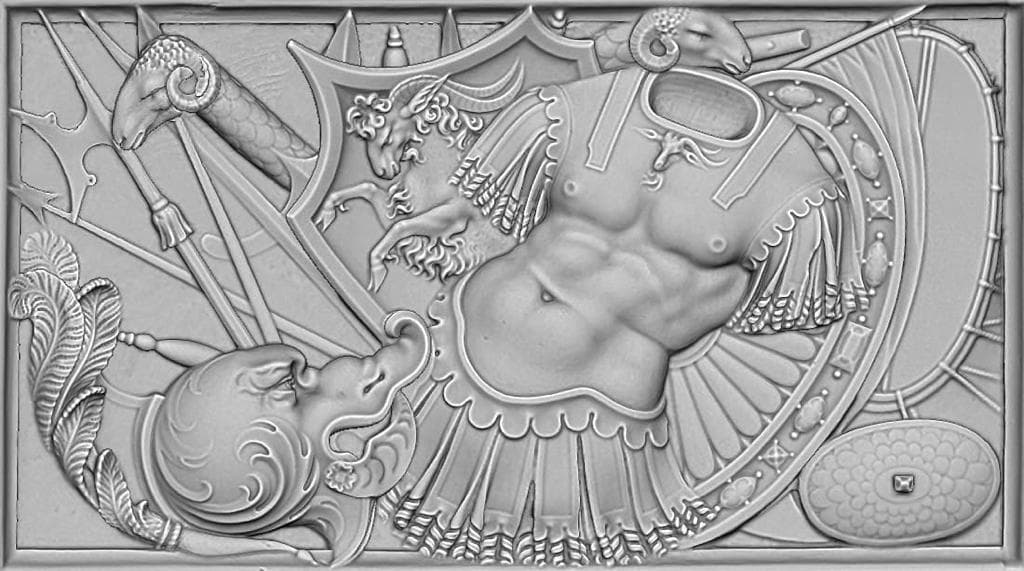

Meshed

From Raw to Mesh

MeshLab
