Creation of a technical tool using POP3 - Ispanico

Today, I want to show you something less visually appealing but more interesting and related to my work.
I scanned an endoscopic camera to create a jig that allows for its opening.

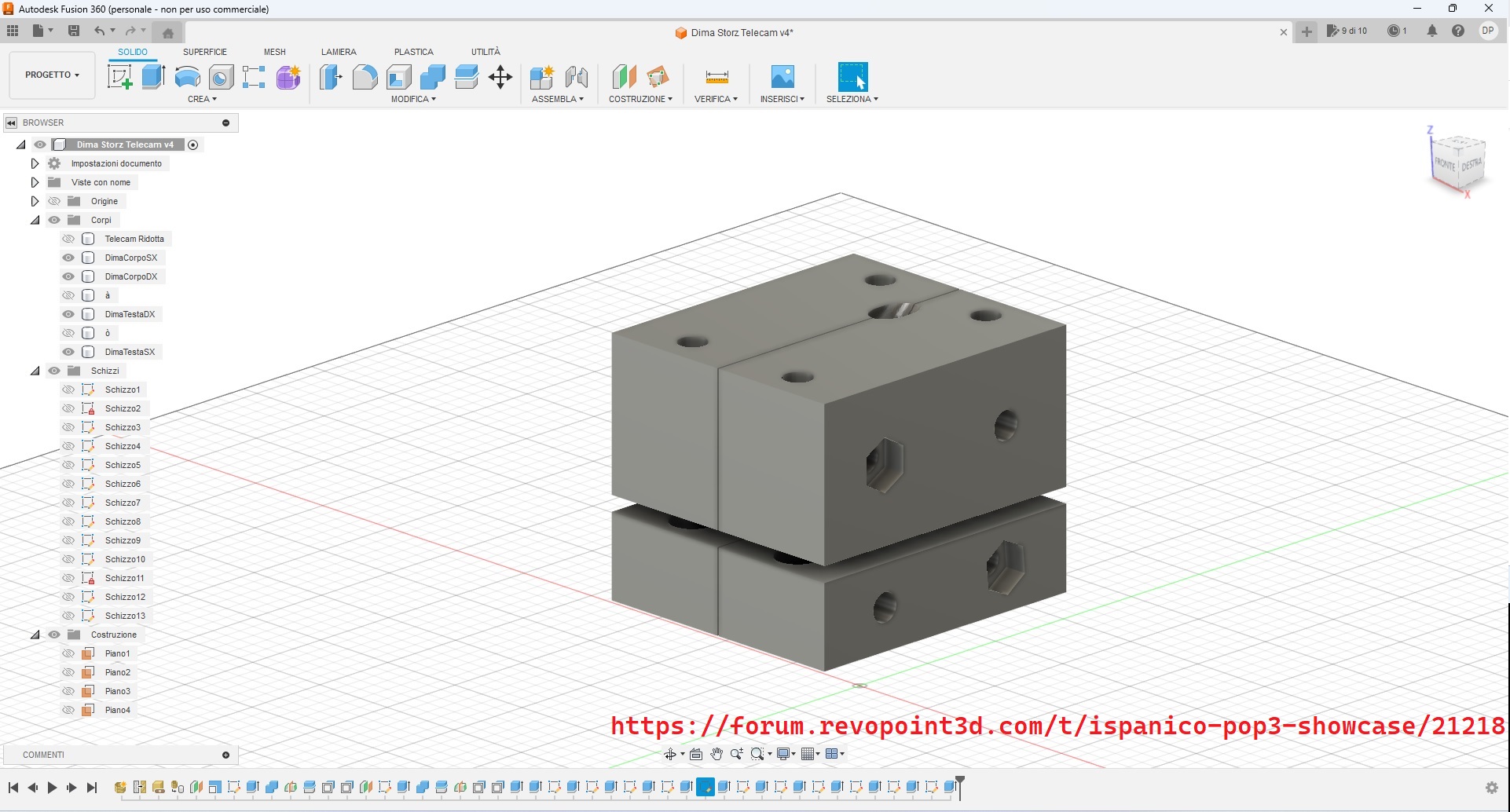

After scanning with the POP3, the file was cleaned up to remove unnecessary parts and simplified to be better managed in Fusion360. Once the model was imported, considering the simplicity of the task and not requiring reverse engineering, it was converted from mesh to body, enlarged by 3% to compensate for FDM printing tolerances, and two separate cradles were shaped to secure the two points to be separated in the camera body.

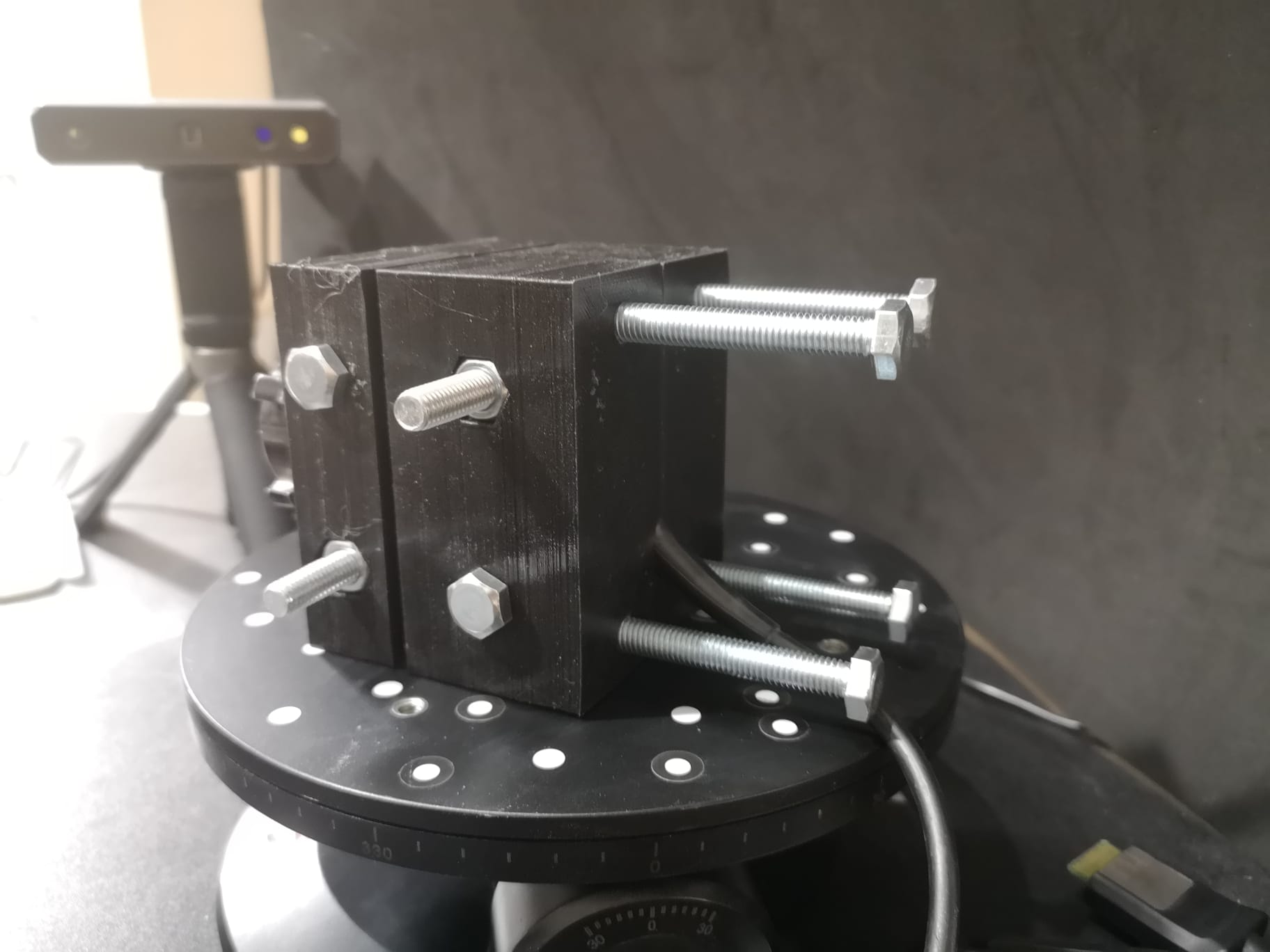

After completing the design, the files were fed into the slicer, and after 20 hours of printing, the tool was ready.
What do you think?
Of course, this was a relatively simple project, both conceptually and in execution. If you enjoy this type of content, I could show you some reverse engineering projects I’ve done using Revopoint’s 3D scanners
