Scanning and Reverse Engineering of a Sterile Battery Shell for Surgical Motors.

Today, I bring you a practical application in the professional use of Revopoint 3D scanners.
Using the brand-new POP3, I scanned a battery shell for surgical instruments in order to reconstruct the model in Fusion360. With several broken shells available, I made cuts in the damaged parts to divide the object and facilitate the scanning process.
Since the pieces were black, they were first painted white and then scanned in 9 different sessions.
The scans were performed with automatic exposure and a rotation speed of 300s. The point clouds were subsequently fused in standard mode at 0.1mm and then merged together. For the fusion, I preferred to use the manual marker system. After completing the “stitching” phase (which took quite a long time this time), the mesh was created at level 6 and subsequently reduced for easier handling in Fusion360.
You will notice that the resulting file is more “grainy” and therefore less visually appealing, as my main focus in this case was dimensional accuracy rather than the beauty of the model.
The model was later “straightened” in PrusaSlicer, which I find very convenient for this operation, and imported into Fusion360.

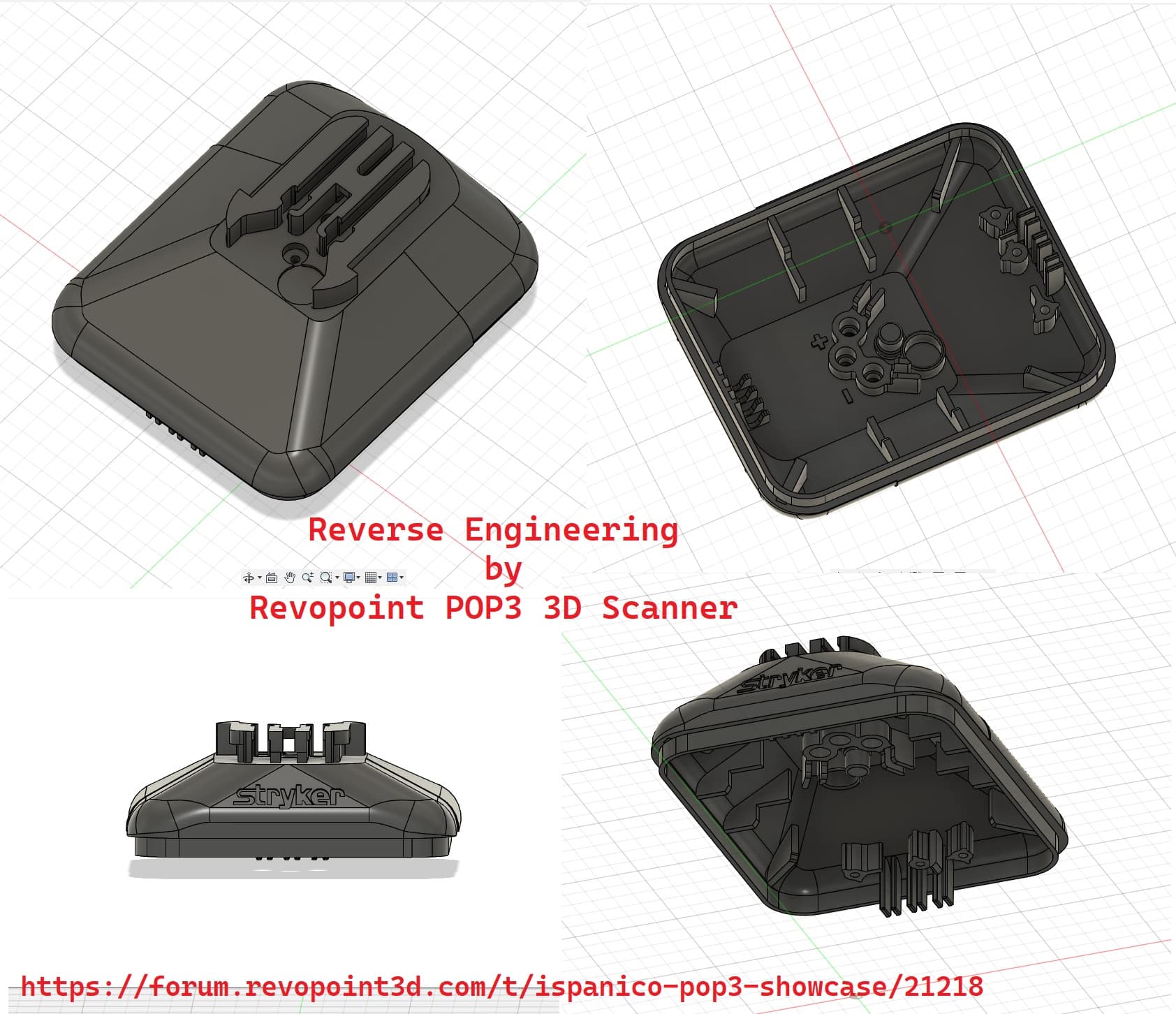

Once imported, I was able to proceed with the Reverse Engineering operations based on the scanned data. The model came out perfect, and after a final check, I conducted a resin printing test to practically assess the quality of the result.
What can I say? This scanner is perfectly suited for this type of work without any hitches or complications. I hope you find this showcase enjoyable.
What do you think?

If you’re interested in purchasing, you can find the POP3 at the following links:
Global: Revopoint POP 3: Portable 3D Scanner for Vibrant Color Scans
US: Revopoint POP 3: Portable 3D Scanner for Vibrant Color Scans

More showcase at the following link:

Ispanico POP3 Showcase

New POP3 unboxing [1] [2] In the package, you will find the POP3, an extendable and foldable stand, a phone holder, the standard rotating table, the calibration board, markers, a black cloth for shielding, an adhesive stick to position the scanned pieces, a bust for testing, the USB C to standard USB cable, a dual cable for the power bank and the phone, and a USB A to USB C adapter. [3] The new POP3 immediately presents substantial differences both on the front and the back. On the front…

Top

Bottom

Whole Piece

Mesh and Body

Scan Process

Scan Process

The 9 different partial scans

Merging

Straightening

Comparison between 3D-printed redesigned piece and the original piece

Scanned parts used to reconstruct the complete 3D model

Fusion360 Video

[Rilot]

Very nice. Your reverse engineering workflow looks very similar to mine. I tend to convert to a solid in Geomagic before taking in to Fusion though. It loses a lot of detail but it’s easier to work with than the mesh.

[ivan]

thanks for sharing, great scans, great reverse engineering! what kind of white paint did you use?

[PUTV]

Great showcase !
