MINI Revopoint - study of the surface traces on wooden sculpture (18th century) with Macro 3D Scanning

KS link:

Wood carver working on a sculpture (you see all the tools used to do the work)

Hello everyone,
One of the important operations required in the preliminary study for the restoration of cultural relics is the study of the techniques of realization.
The Art Conservator carefully examines the cutural relic and records its observations to identify the constituent materials, construction techniques and tools used by the artist. In the latter case, the traces left on the surface of a wooden sculpture are the object of particularly in-depth study.
Precisely to study these traces, I use a technique that can be defined as “Macro 3D Scanning”: I scan portions of the surface of a cultural relics at high resolution and process the meshes with 3D software to enhance the traces present on the surface.
Below I post a series of these traces that I recorded on a wooden sculpture of the eighteenth century.

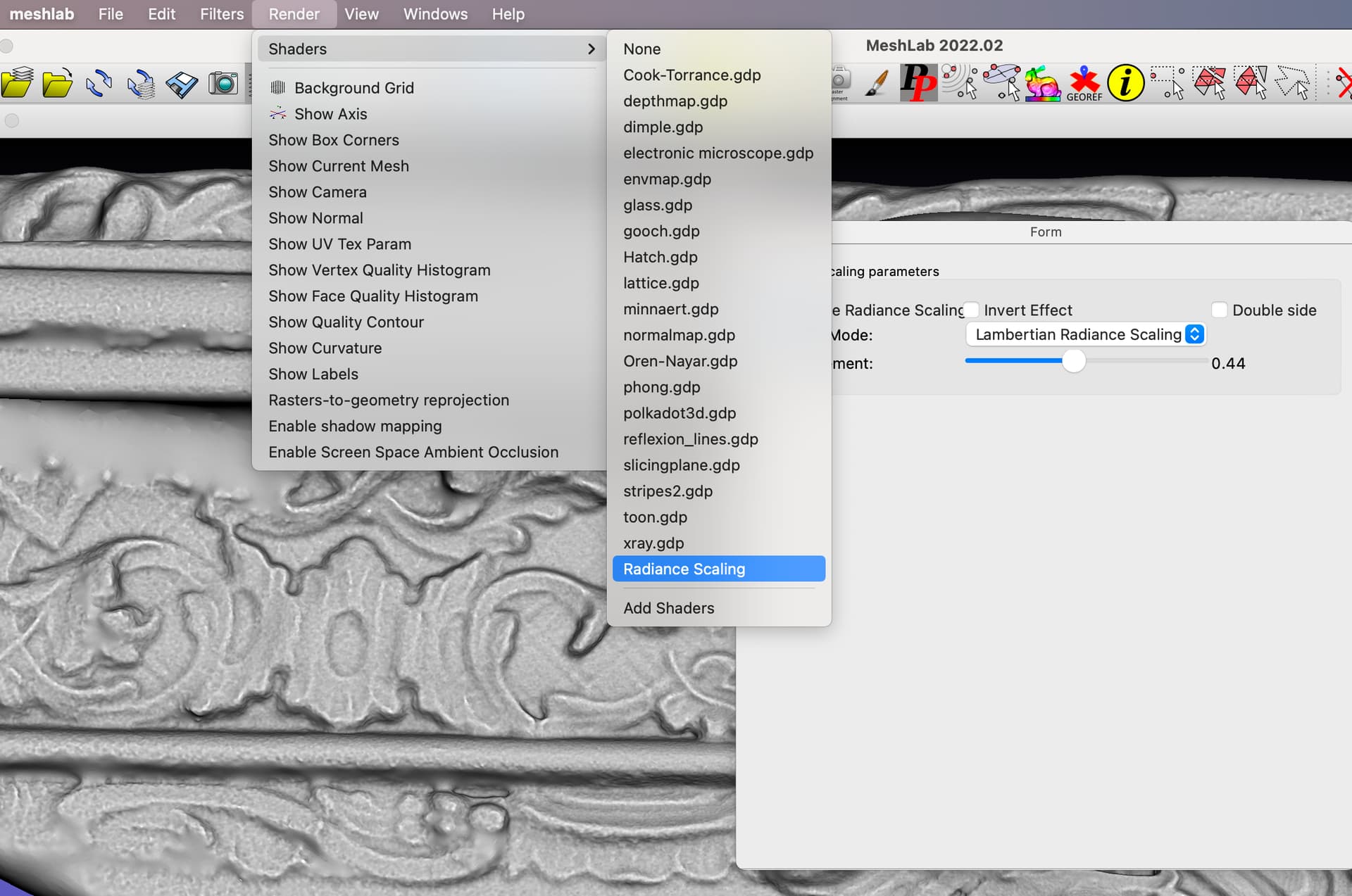

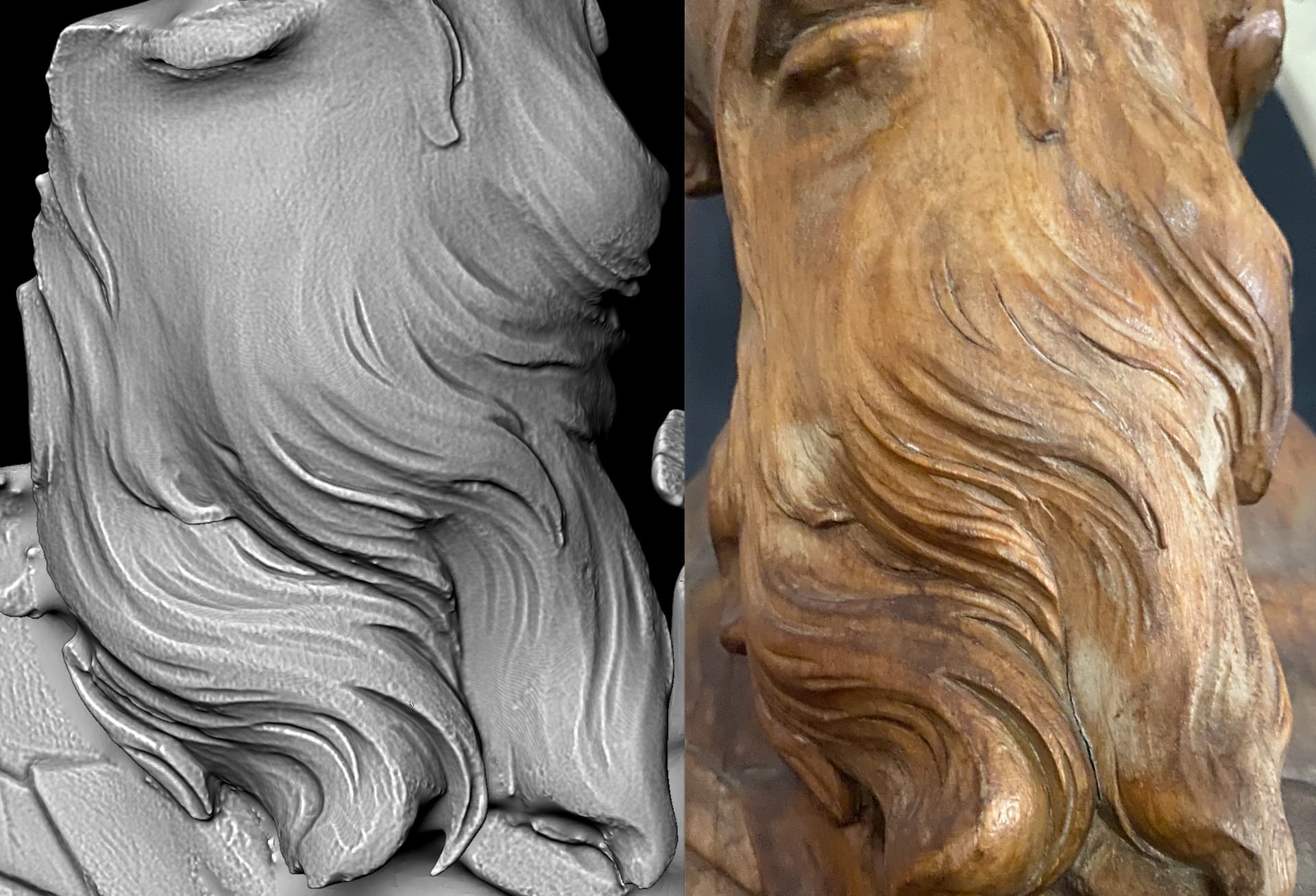

The scans were made with Mini Revopoint using the Feature, High Accuracy mode. After fusing, the Point Clouds were meshed at maximum resolution. The meshes were edited with Meshlab using the “Radiance scaling” shader and angling the “virtual” light in order to enhance the surface morphology. The snapshots were juxtaposed to photos of the corresponding areas.

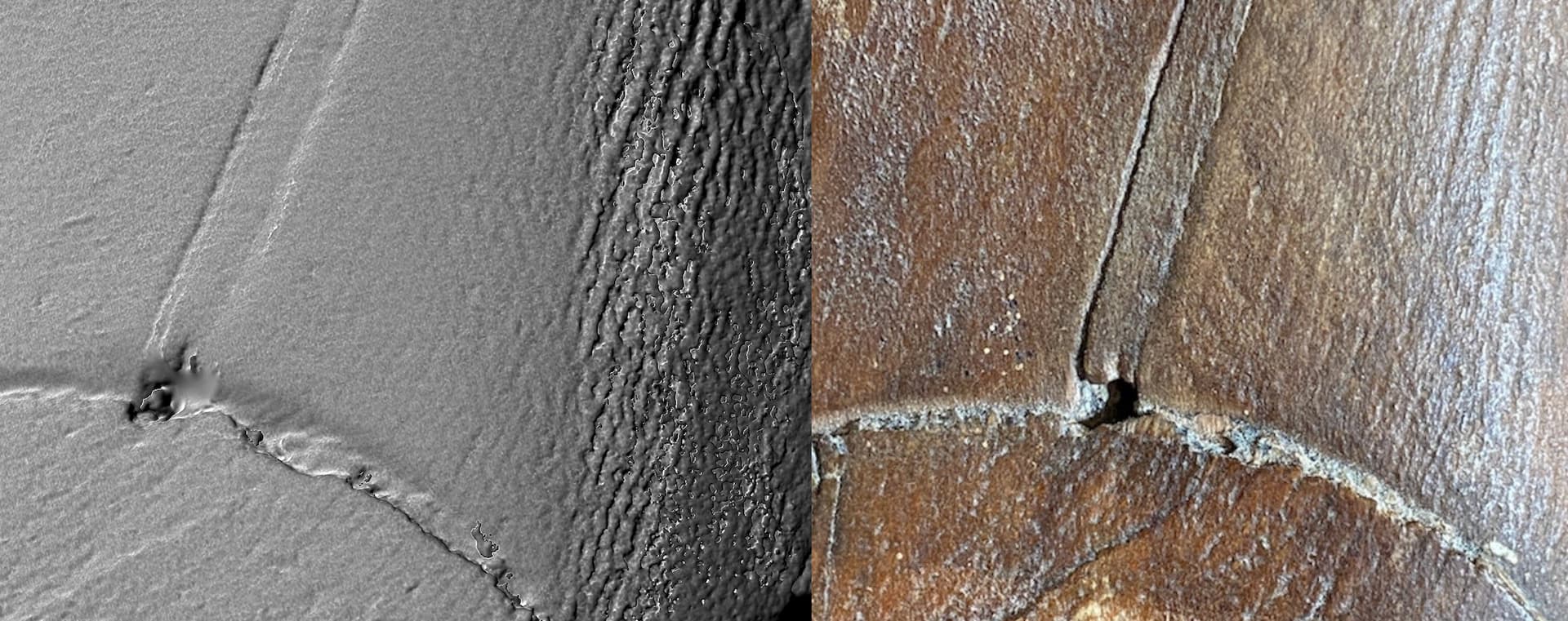

traces of wood chisels of various shapes and sizes

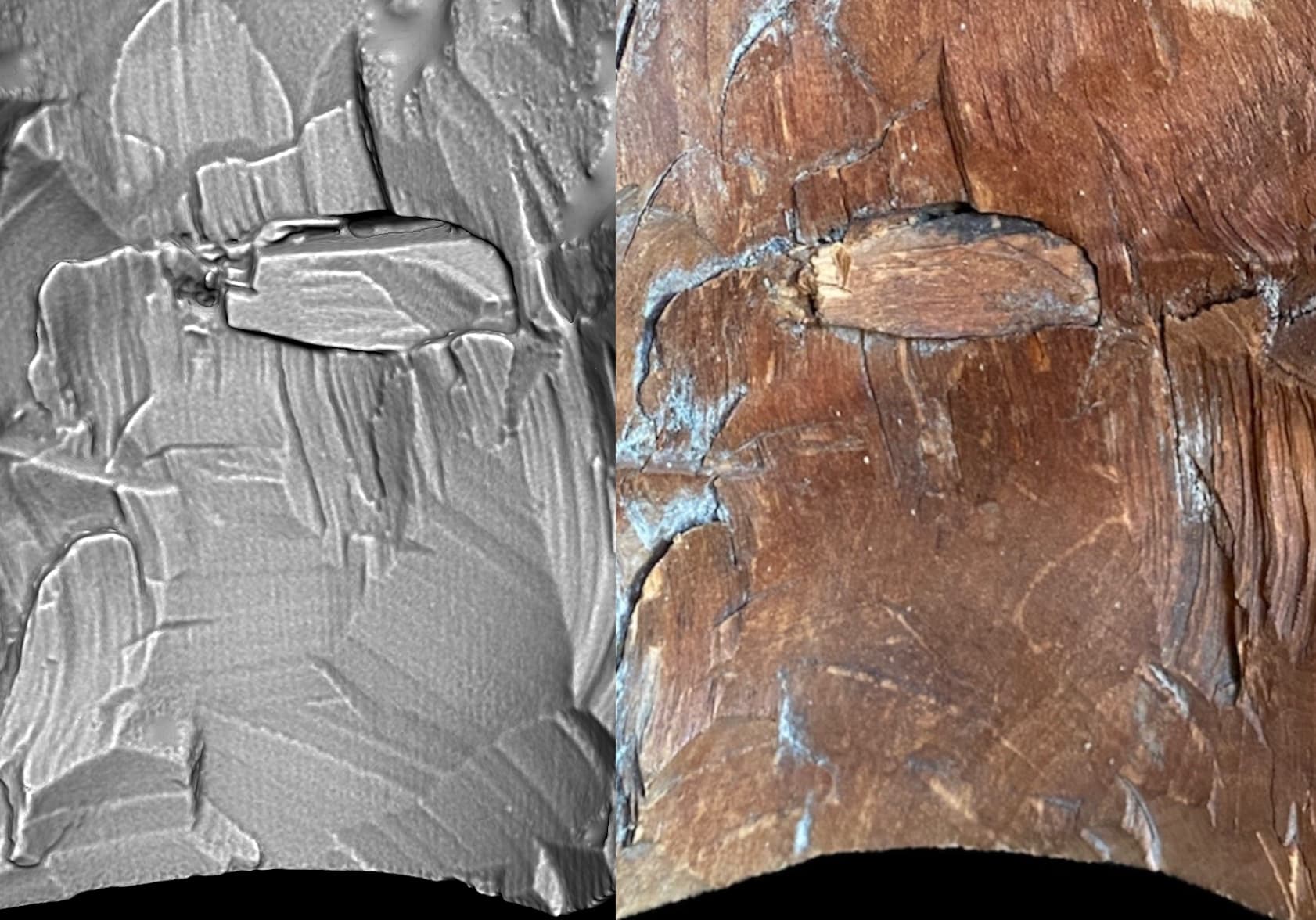

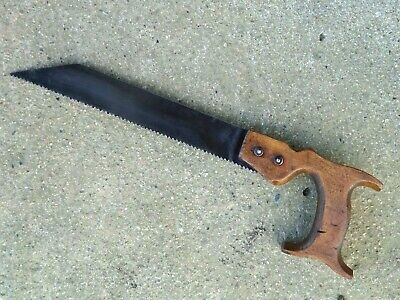

cutting plane performed with a hand saw (see below)

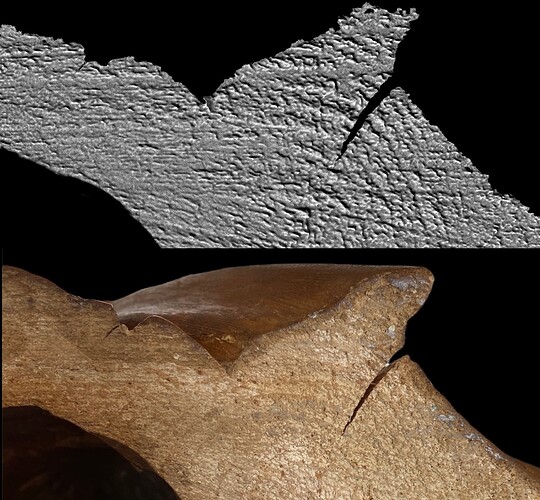

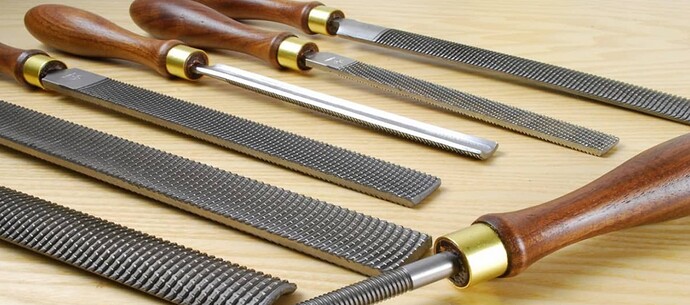

file traces (rough)

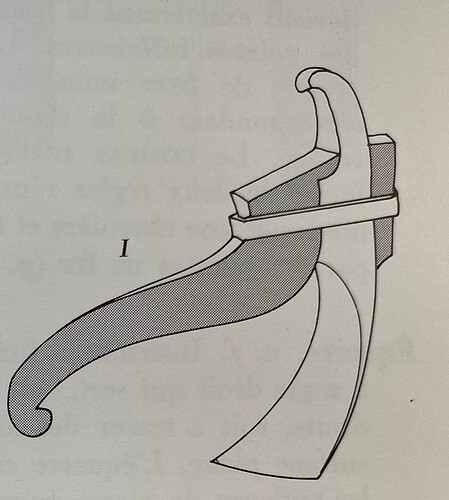

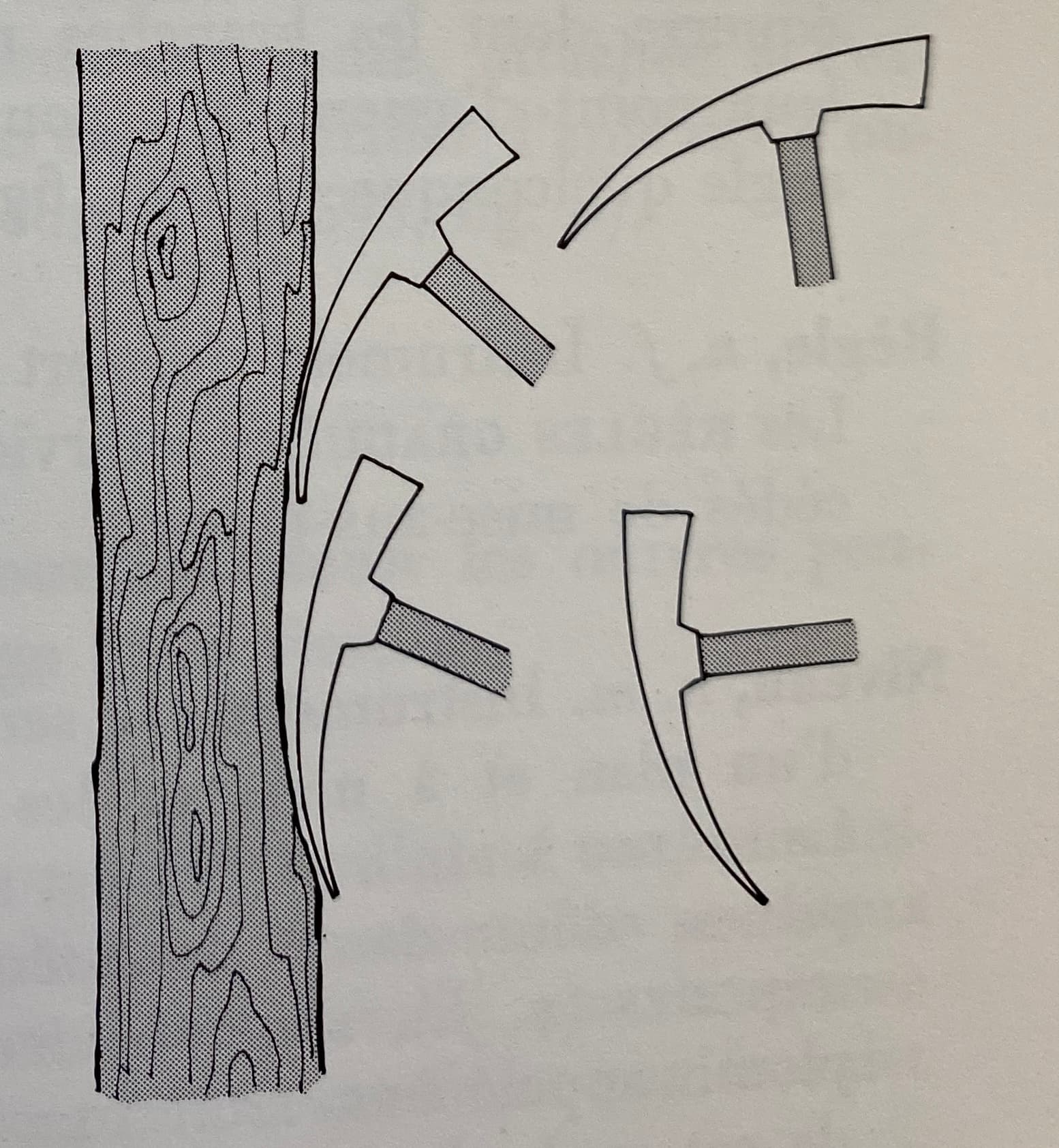

traces of a digging tool (Probably a Herminette
see below)

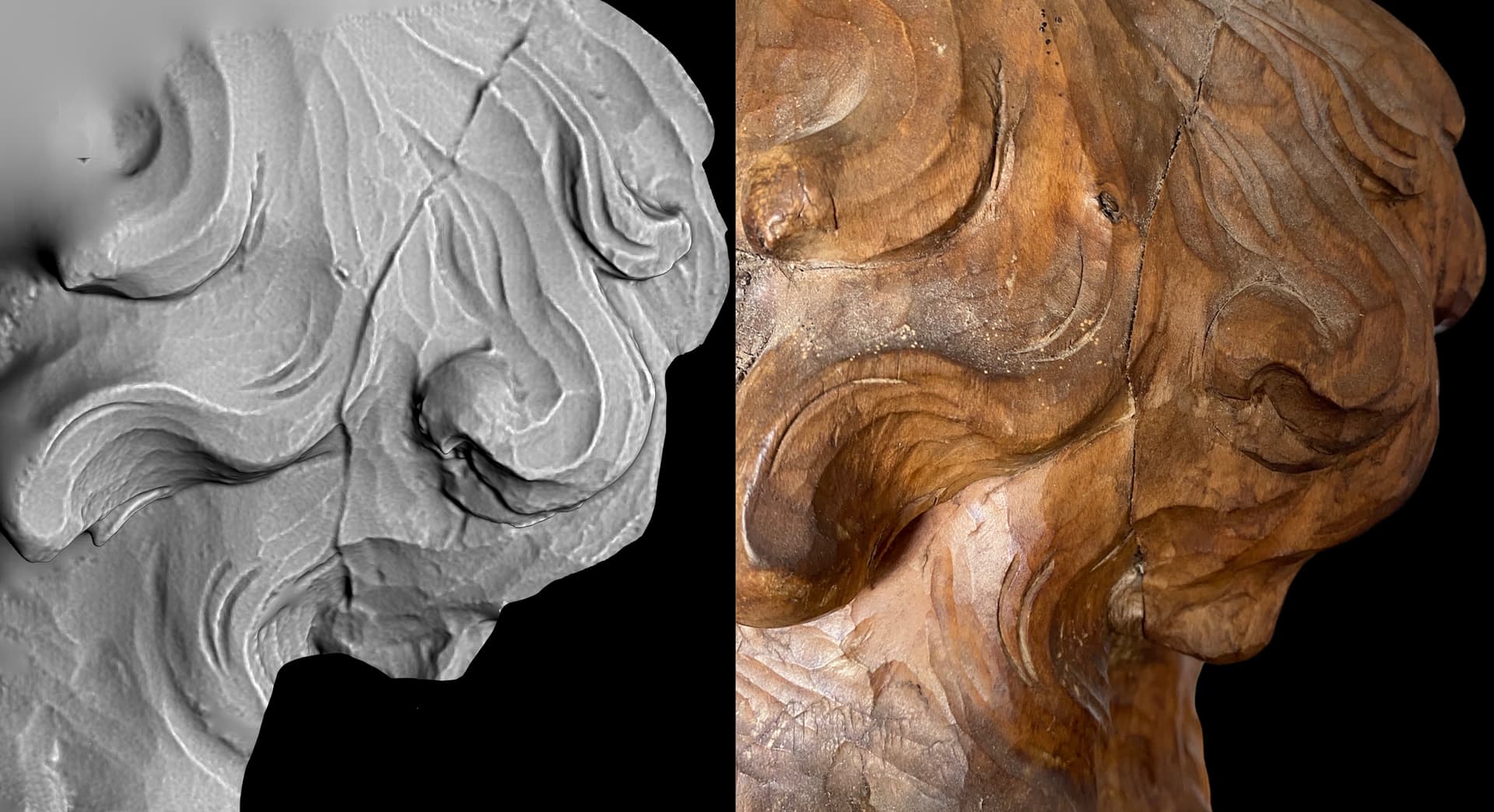

fine surface abrasion with fine grain rifle and abrasive
