Audi A6 Ashtray modification for USB

[Stelzer]

Hello,

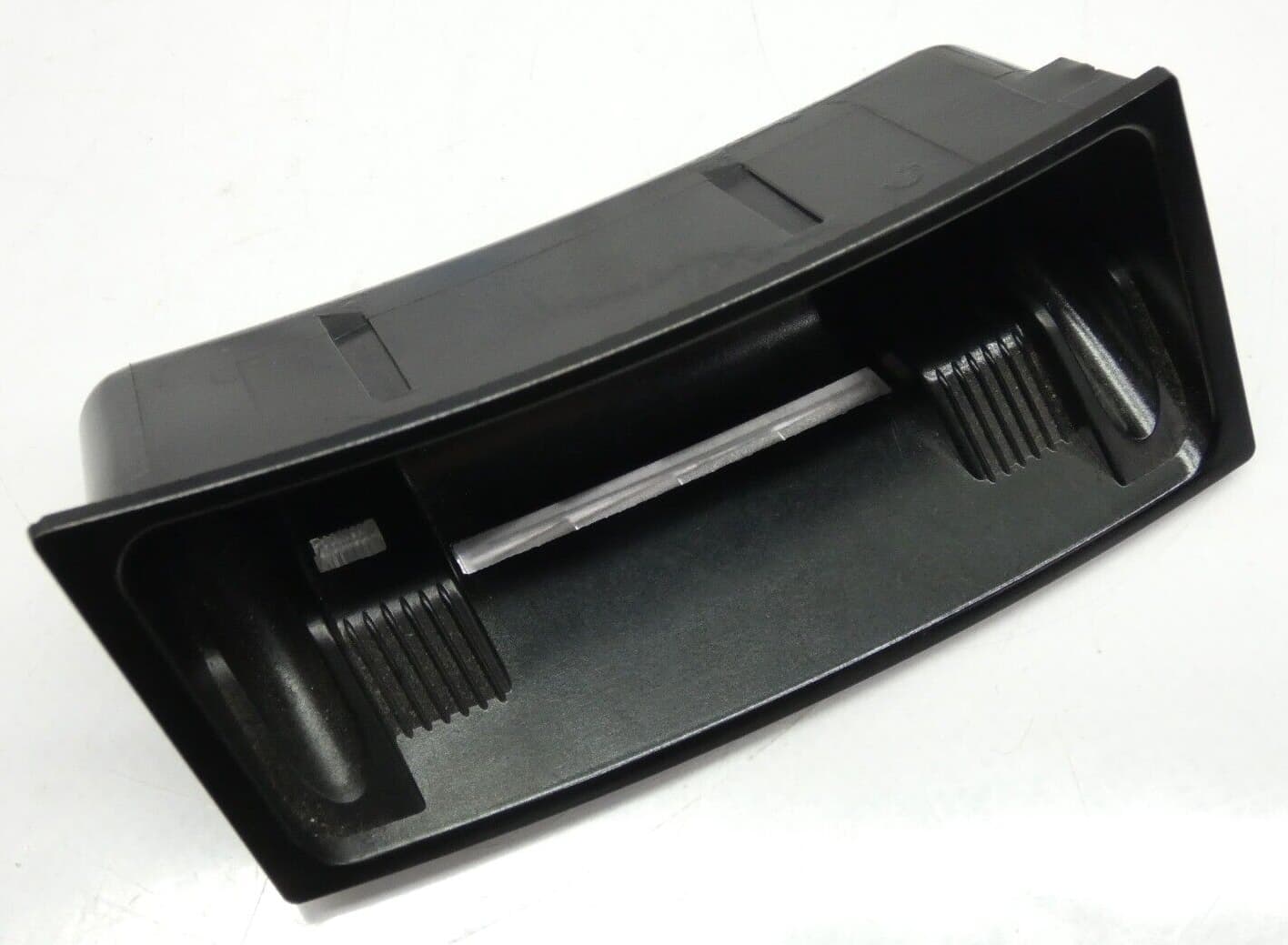

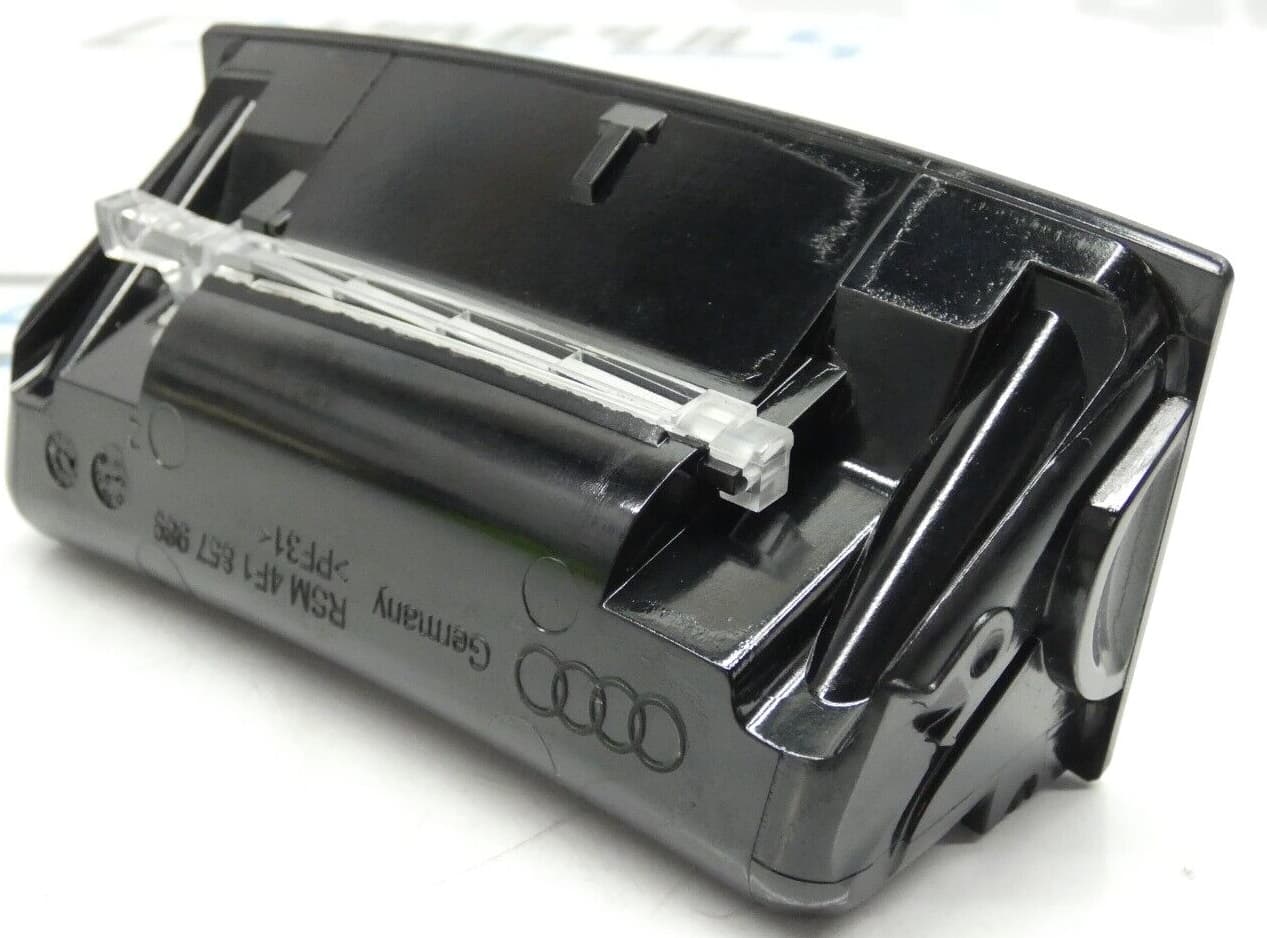

like to share my mod for the Ashtray of a Audi A6 4F.

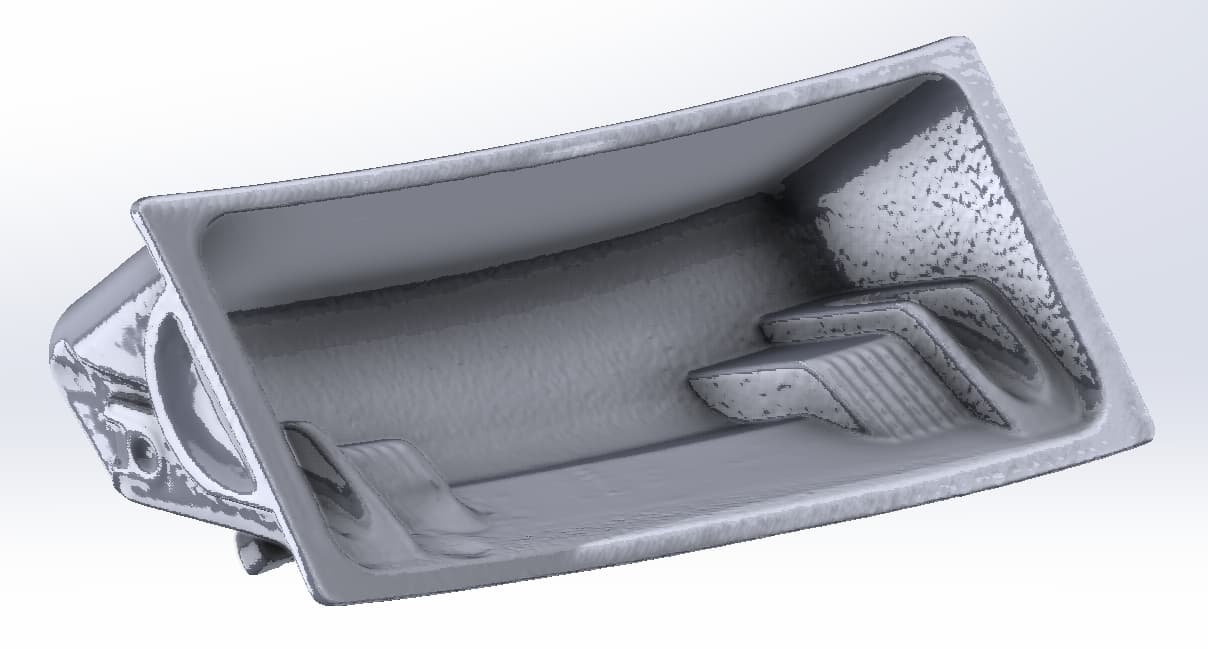

It was scanned with the Revopoint mini. The Ashtray is slightly larger than good for the mini but it worked out pretty good in the end.
2 USB ports for charging with QC 3.0, 2 switches for lights and the middle switch for on/off, switched by the Ashtray lid.
The USB ports will be disabled when the lid get closed with the switch in the middle. This way the battery will not get drained.
I had to do 2 Scans and merge them together.

Without the Revopoint i would not have be able to do this. This part consists of nothing but angles and curves what did make it extremly difficult to work with.

[Stelzer]

After that i used the scan to rebuild the frame and inserted my stuff i needed.

I did scan all the switches as well.

Lastly a video and photo of the final mod. Audio is in german please don´t mind it… ^^;

Audi A6 Ascher USB mod

Fitting test

[Stelzer]

And here a photo where its located in the car.
Sadly i don´t have pictures or video when installed because it was a job for someone else.
